Technical Specifications
Last Updated: 2026-07-10
|
Identity
Performance
Physical
Drivetrain
Control & Signal
Electrical & Environment
Connectivity
Origin
Preferences are saved automatically.
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |
| Product Number | (add) |
| Category | Hobby |
| Performance | |
| Torque |
8.4V
625.05 oz-in
45.01 kg-cm
4.4 N-m
7.4V
555.60 oz-in
40.01 kg-cm
3.9 N-m
6.0V
472.26 oz-in
34.01 kg-cm
3.3 N-m
|
| Speed |
8.4V
0.10 sec/60°
600.0 deg/s
100.0 RPM
7.4V
0.12 sec/60°
500.0 deg/s
83.3 RPM
6.0V
0.14 sec/60°
428.6 deg/s
71.4 RPM
|
| Running Current | (add) |
| Stall Current | (add) |
| Physical | |
| Weight | (add) |
| Dimensions |
L 2.17 in W 0.79 in H 1.76 in L 55.1 mm W 20.1 mm H 44.7 mm |
| Case Material | Metal |
| Drivetrain | |
| Motor Type | Brushless |
| Motor Drive | (add) |
| Gears | Metal |
| Gear Spline/Teeth | (add) |
| Shaft Size | (add) |
| Rotation Mode | (add) |
| Rotation/Support | (add) |
| Backlash | (add) |
| Control & Signal | |
| Modulation | Digital |
| Direction | (add) |
| Rotational Range | 360° |
| Mechanical Limit | (add) |
| Pulse Cycle | (add) |
| Pulse Width | 1000-2000 µs |
| Neutral Position | (add) |
| Dead Band | (add) |
| Refresh Rate | (add) |
| Angle Sensor | (add) |
| Control System | (add) |
| Programmable | (add) |
| Signal Voltage | (add) |
| Electrical & Environment | |
| Operating Voltage | 6–8.4 V |
| Power Source | (add) |
| Regulator Type | (add) |
| Temperature | (add) |
| Water Rating | (add) |
| Certification | (add) |
| Idle Current | (add) |
| Connectivity | |
| Connector | (add) |
| Wire Length | (add) |
| Origin | |
| Country of Origin | China |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Performance Analysis
| Shaft Power | 6.24–11.56 W |
| Torque-to-Volume Ratio | 156.52 oz-in/in³ Denser torque than 67% of the 25 Digital Large servos in the database |
| Power Density | 3.830 W/in³ More power-dense than 92% of the 88 Digital Large servos in the database |
| Speed-Torque Trade-off | 66.11 Better balanced than 57% of the 31 Large servos in the database |
| Torque Gain per Volt | 13.48%/V More voltage-responsive (torque) than 33% of the 1637 Hobby servos in the database |
| Speed Gain per Volt | 16.66%/V More voltage-responsive (speed) than 53% of the 1661 Hobby servos in the database |
| Voltage Range Width | 2.4 V Wider voltage range than 25% of the 120 Digital Large servos in the database |
Quick Actions
Similar Active Servos

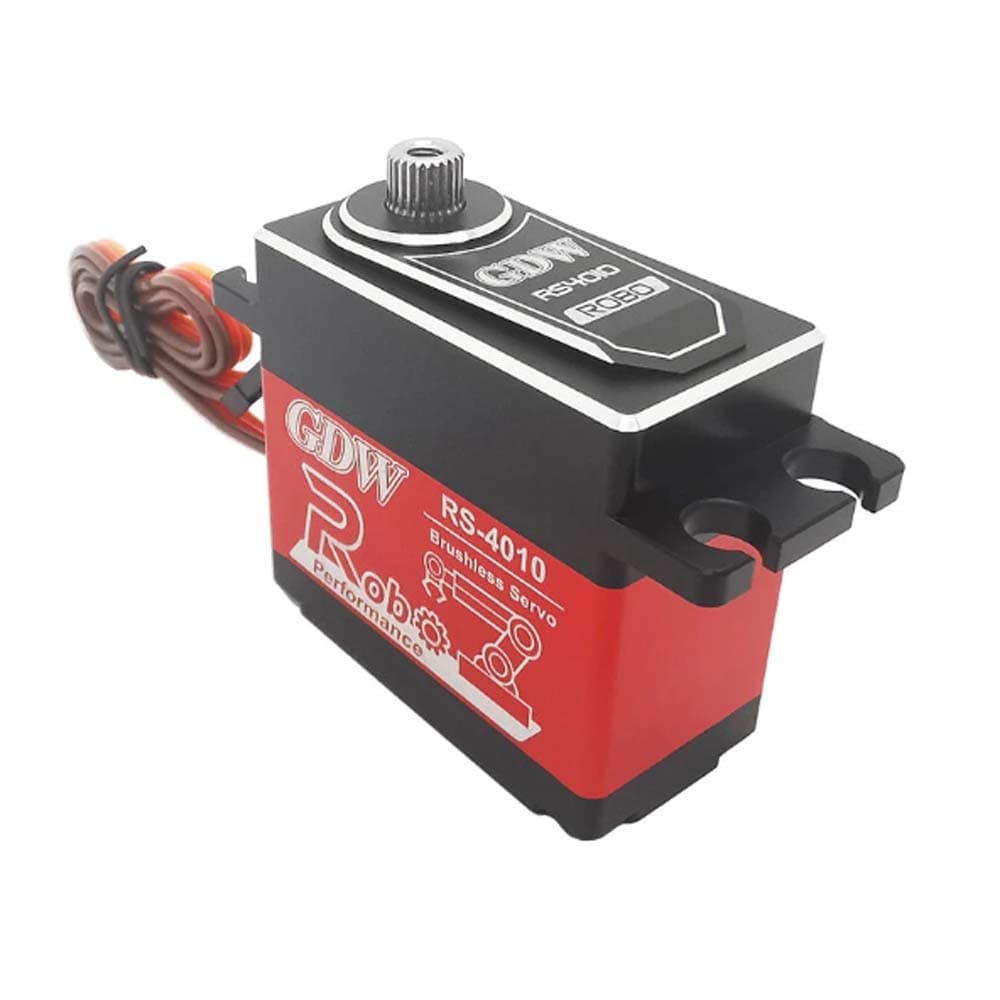

Reviews of GDW RS4010
