Technical Specifications
Last Updated: 2026-07-10
|
Identity
Performance
Physical
Drivetrain
Control & Signal
Electrical & Environment
Connectivity
Origin
Preferences are saved automatically.
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |
| Product Number | (add) |
| Category | Hobby |
| Performance | |
| Torque |
8.4V
166.68 oz-in
12.00 kg-cm
1.2 N-m
7.4V
152.79 oz-in
11.00 kg-cm
1.1 N-m
6.0V
125.01 oz-in
9.00 kg-cm
0.9 N-m
|
| Speed |
8.4V
0.06 sec/60°
1,000.0 deg/s
166.7 RPM
7.4V
0.07 sec/60°
857.1 deg/s
142.9 RPM
6.0V
0.08 sec/60°
750.0 deg/s
125.0 RPM
|
| Running Current | (add) |
| Stall Current | (add) |
| Physical | |
| Weight | (add) |
| Dimensions |
L 1.42 in W 0.59 in H 1.24 in L 36.1 mm W 15.0 mm H 31.5 mm |
| Case Material | (add) |
| Drivetrain | |
| Motor Type | Coreless |
| Motor Drive | (add) |
| Gears | Steel |
| Gear Spline/Teeth | (add) |
| Shaft Size | (add) |
| Rotation Mode | (add) |
| Rotation/Support | (add) |
| Backlash | (add) |
| Control & Signal | |
| Modulation | (add) |
| Direction | (add) |
| Rotational Range | (add) |
| Mechanical Limit | (add) |
| Pulse Cycle | (add) |
| Pulse Width | (add) |
| Neutral Position | 1520 µs |
| Dead Band | (add) |
| Refresh Rate | 333 Hz |
| Angle Sensor | (add) |
| Control System | (add) |
| Programmable | (add) |
| Signal Voltage | (add) |
| Electrical & Environment | |
| Operating Voltage | 6–8.4 V |
| Power Source | (add) |
| Regulator Type | (add) |
| Temperature | (add) |
| Water Rating | (add) |
| Certification | (add) |
| Idle Current | (add) |
| Connectivity | |
| Connector | (add) |
| Wire Length | (add) |
| Origin | |
| Country of Origin | China |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Performance Analysis
| Shaft Power | 2.89–5.14 W |
| Torque-to-Volume Ratio | 120.33 oz-in/in³ Denser torque than 81% of the 313 Mini servos in the database |
| Power Density | 4.944 W/in³ More power-dense than 76% of the 22 GDW servos in the database |
| Speed-Torque Trade-off | 10.00 Better balanced than 71% of the 313 Mini servos in the database |
| Torque Gain per Volt | 13.89%/V More voltage-responsive (torque) than 30% of the 254 Mini servos in the database |
| Speed Gain per Volt | 13.89%/V More voltage-responsive (speed) than 35% of the 255 Mini servos in the database |
| Voltage Range Width | 2.4 V Wider voltage range than 30% of the 21 GDW servos in the database |
Quick Actions
Similar Active Servos

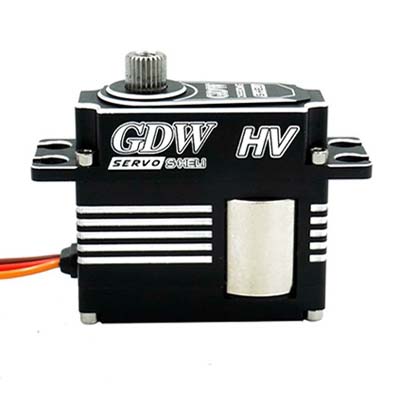

Reviews of GDW DS590MG
