Technical Specifications
Last Updated: 2026-10-26
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |

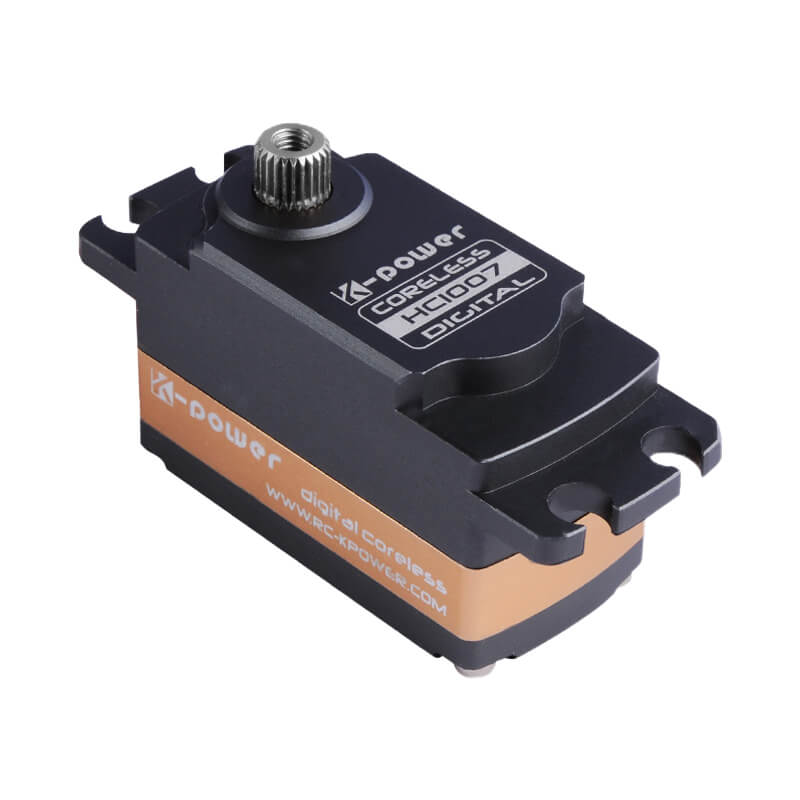

| Product Number | HC1007 |
| Category | Hobby |
| Performance | |
| Torque |
7.4V102.79 oz-in7.40 kg-cm0.7 N-m |
| Speed |
7.4V0.09 sec/60°666.7 deg/s111.1 RPM |
| Stall Current | ≤3.2 A≤3200 mAAverage |
| Physical | |
| Weight | 1.96 oz55.5 gBelow Average |
| Dimensions |
L 1.57 in W 0.79 in H 1.00 in L 39.9 mm W 20.1 mm H 25.4 mm |
| Case Material | Aluminum |
| Drivetrain | |
| Motor Type | Coreless |
| Gears | Metal |
| Gear Spline/Teeth | 25 T |
| Shaft Size | 6.0 mm |
| Rotation/Support | Dual Bearings |
| Control & Signal | |
| Rotational Range | 120° |
| Dead Band | 3 µs |
| Angle Sensor | Potentiometer |
| Control System | RS-485 / PWM |
| Electrical & Environment | |
| Operating Voltage | 4.8–8.4 V |
| Temperature | -10–50 °C14–122 °F |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Class Comparison
| Weight | Below Average Lighter than 27% of 414 Low Profile servos |
| Stall Current | Average Lower draw than 61% of 90 Low Profile servos |
Performance Analysis
| Shaft Power | 2.11 W |
| Power Density | 1.703 W/in³ More power-dense than 48% of 62 Kpower servos |
| Torque Density | 1.8521 oz-in/g |
| Torque-to-Volume Ratio | 82.88 oz-in/in³ |
| Speed-to-Weight | 0.20020 (1/sec·g) |
| Speed-Torque Trade-off | 9.25 |
| Current-per-Torque Ratio | 0.0311 A/oz-in |
| Voltage Range Width | 3.6 V Wider voltage range than 63% of 49 Kpower servos |
