Technical Specifications
Last Updated: 2026-10-10
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |

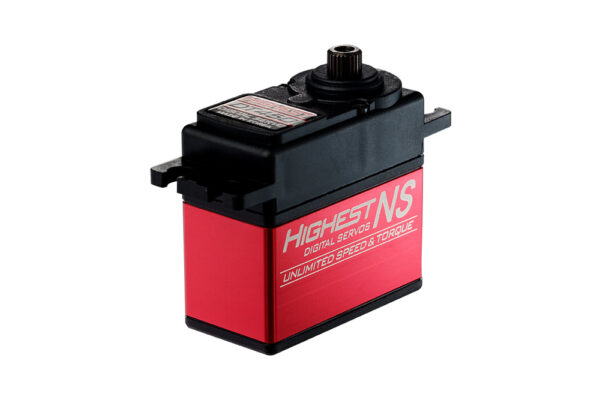

| Product Number | DT450 |
| Category | Hobby |
| Performance | |
| Torque |
6.0V
109.71 oz-in
7.90 kg-cm
0.8 N-m
4.8V
99.99 oz-in
7.20 kg-cm
0.7 N-m
Below Average
|
| Speed |
6.0V
0.11 sec/60°
545.5 deg/s
90.9 RPM
4.8V
0.13 sec/60°
461.5 deg/s
76.9 RPM
Average
|
| Physical | |
| Weight | 1.94 oz54.9 gAbove Average |
| Dimensions |
L 1.56 in W 0.79 in H 1.52 in L 39.6 mm W 20.1 mm H 38.6 mm |
| Case Material | Plastic / Aluminum |
| Drivetrain | |
| Motor Type | Cored |
| Gears | Metal |
| Gear Spline/Teeth | 25 T |
| Rotation/Support | Dual Bearings |
| Control & Signal | |
| Modulation | Digital |
| Electrical & Environment | |
| Operating Voltage | 4.8–7.4 V |
| Temperature | -10–60 °C14–140 °F |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Class Comparison
| Torque | Below Average Stronger than 18% of 1043 Digital Standard servos at 4.8V |
| Speed | Average Faster than 53% of 1041 Digital Standard servos at 4.8V |
| Weight | Above Average Lighter than 77% of 1902 Digital Standard servos |
Performance Analysis
| Shaft Power | 1.42–1.84 W |
| Power Density | 0.984 W/in³ More power-dense than 17% of 1759 Digital Standard servos |
| Torque Density | 1.8213 oz-in/g Stronger than 18% of 1036 Digital Standard servos |
| Torque-to-Volume Ratio | 53.38 oz-in/in³ Denser torque than 17% of 1042 Digital Standard servos |
| Speed-to-Weight | 0.14012 (1/sec·g) Faster than 66% of 1033 Digital Standard servos |
| Speed-Torque Trade-off | 13.00 Better balanced than 20% of 1031 Digital Standard servos |
| Voltage Range Width | 2.6 V Wider voltage range than 65% of 1539 Digital Standard servos |
