Technical Specifications
Last Updated: 2026-10-26
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |

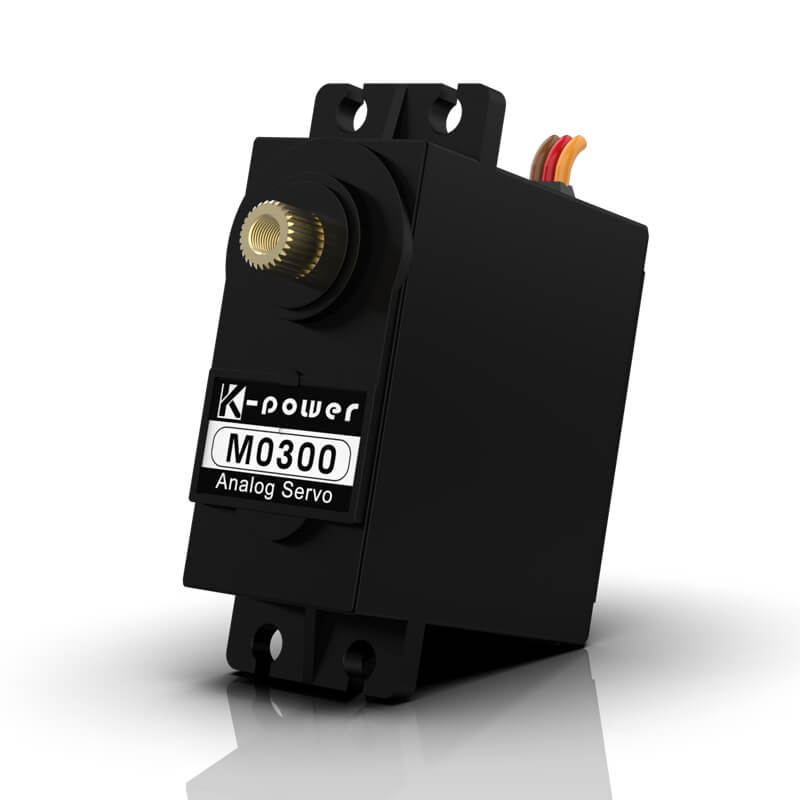

| Product Number | M0300 |
| Category | Hobby |
| Performance | |
| Torque |
6.0V83.34 oz-in6.00 kg-cm0.6 N-m |
| Speed |
6.0V0.12 sec/60°500.0 deg/s83.3 RPM |
| Physical | |
| Weight | 2.05 oz58.0 gBelow Average |
| Dimensions |
L 1.57 in W 0.79 in H 1.48 in L 39.9 mm W 20.1 mm H 37.6 mm |
| Case Material | Plastic |
| Drivetrain | |
| Motor Type | DC |
| Gears | Metal |
| Gear Spline/Teeth | 25 T |
| Rotation/Support | Dual Bearings |
| Backlash | 1.000° |
| Control & Signal | |
| Modulation | Analog |
| Rotational Range | 120° |
| Angle Sensor | Potentiometer |
| Electrical & Environment | |
| Operating Voltage | 4.8–8.4 V |
| Temperature | -10–50 °C14–122 °F |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Class Comparison
| Weight | Below Average Lighter than 16% of 448 Analog Standard servos |
Performance Analysis
| Shaft Power | 1.28 W |
| Power Density | 0.700 W/in³ More power-dense than 62% of 433 Analog Standard servos |
| Torque Density | 1.4369 oz-in/g |
| Torque-to-Volume Ratio | 45.40 oz-in/in³ |
| Speed-to-Weight | 0.14368 (1/sec·g) |
| Speed-Torque Trade-off | 10.00 |
| Voltage Range Width | 3.6 V 5th-highest voltage range width of 239 Analog Standard servos |
| Backlash-to-Range Ratio | 0.00833 Tighter backlash than 3% of 60 Standard servos |
