Technical Specifications
Last Updated: 2026-10-10
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |
| Category | Hobby |
| Performance | |
| Torque |
6.0V83.34 oz-in6.00 kg-cm0.6 N-m |
| Speed |
6.0V0.17 sec/60°352.9 deg/s58.8 RPM |
| Physical | |
| Weight | 0.74 oz21.0 gAbove Average |
| Dimensions |
L 1.10 in W 0.51 in H 1.06 in L 27.9 mm W 13.0 mm H 26.9 mm |
| Drivetrain | |
| Motor Type | DC |
| Gears | Metal |
| Rotation/Support | Bushing |
| Control & Signal | |
| Modulation | Digital |
| Rotational Range | 120° |
| Electrical & Environment | |
| Operating Voltage | 4.5–6 V |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Class Comparison
| Weight | Above Average Lighter than 68% of 466 Digital Mini servos |
Performance Analysis
| Shaft Power | 0.91 W |
| Power Density | 1.524 W/in³ More power-dense than 46% of 440 Digital Mini servos |
| Torque Density | 3.9686 oz-in/g |
| Torque-to-Volume Ratio | 140.15 oz-in/in³ |
| Speed-to-Weight | 0.28011 (1/sec·g) |
| Speed-Torque Trade-off | 14.17 |
| Voltage Range Width | 1.5 V Wider voltage range than 46% of 351 Digital Mini servos |
Similar Active Servos

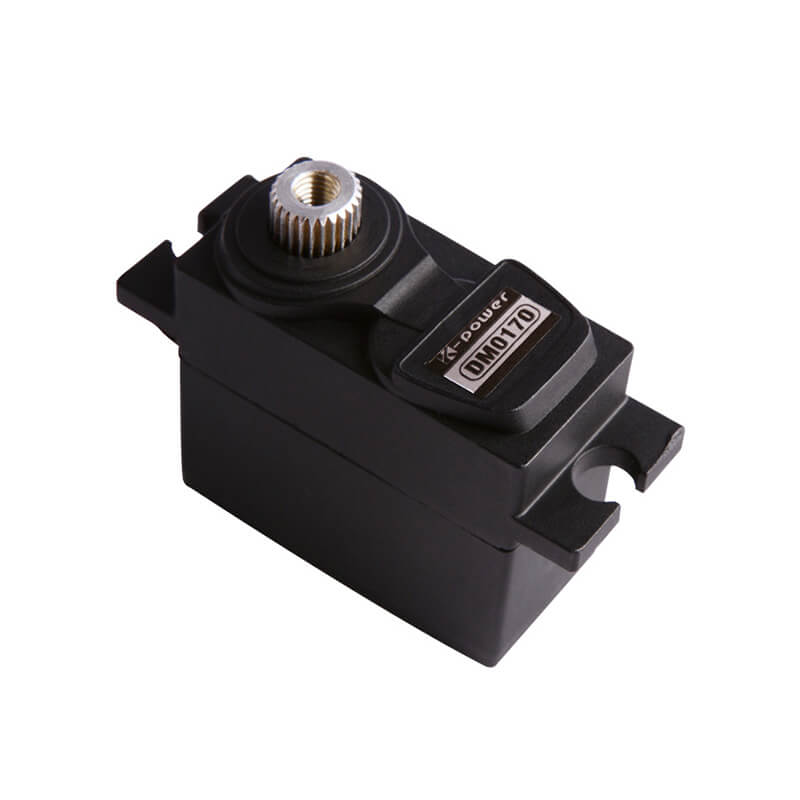

Reviews of Kpower DM0170
