Technical Specifications
Last Updated: 2026-10-24
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |

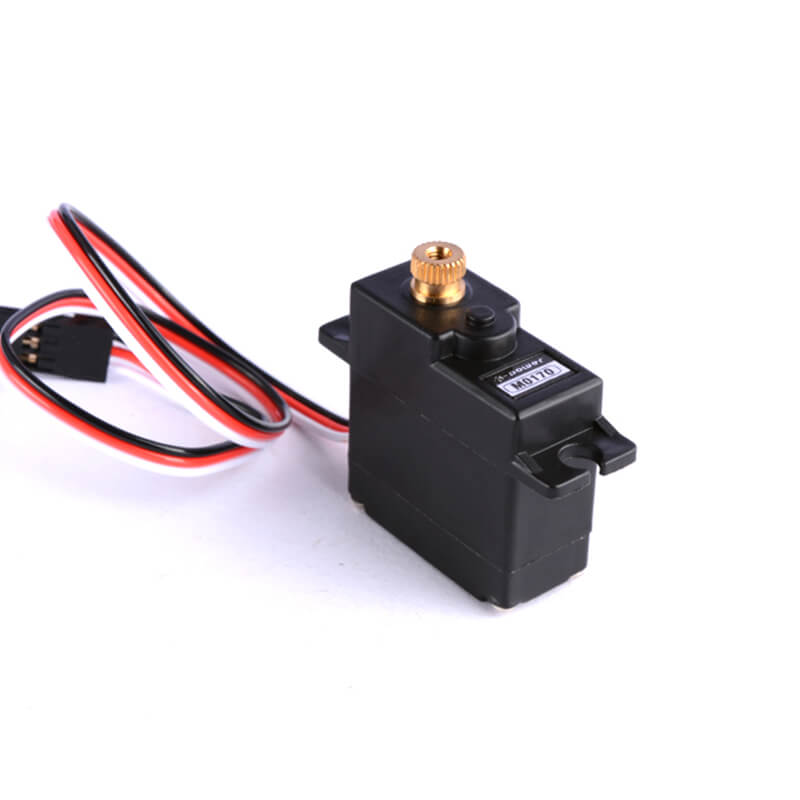

| Product Number | M0170 |
| Category | Hobby |
| Performance | |
| Torque |
6.0V34.72 oz-in2.50 kg-cm0.2 N-m |
| Speed |
6.0V0.08 sec/60°750.0 deg/s125.0 RPM |
| Stall Current | ≤1.5 A≤1500 mAAverage |
| Physical | |
| Weight | 0.74 oz21.0 gAbove Average |
| Dimensions |
L 1.181 in W 0.51 in H 1.161 in L 30.0 mm W 13.0 mm H 29.5 mm |
| Case Material | Plastic |
| Drivetrain | |
| Motor Type | Brushed |
| Gears | Metal |
| Gear Spline/Teeth | 25 T |
| Rotation Mode | Positional |
| Rotation/Support | Single Bearing |
| Control & Signal | |
| Modulation | Digital |
| Rotational Range | 120° |
| Angle Sensor | Potentiometer |
| Control System | RS-485 / PWM |
| Electrical & Environment | |
| Operating Voltage | 4.8–8.4 V |
| Temperature | -10–50 °C14–122 °F |
| Water Rating | IP42 |
| Origin | |
| Country of Origin | China |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Class Comparison
| Weight | Above Average Lighter than 70% of 505 Digital Mini servos |
| Stall Current | Average Lower draw than 59% of 94 Digital Mini servos |
Performance Analysis
| Shaft Power | 0.80 W |
| Power Density | 1.148 W/in³ More power-dense than 26% of 482 Digital Mini servos |
| Torque Density | 1.6533 oz-in/g |
| Torque-to-Volume Ratio | 49.65 oz-in/in³ |
| Speed-to-Weight | 0.59524 (1/sec·g) |
| Speed-Torque Trade-off | 2.78 |
| Current-per-Torque Ratio | 0.0432 A/oz-in |
| Voltage Range Width | 3.6 V Wider voltage range than 81% of 405 Digital Mini servos |
