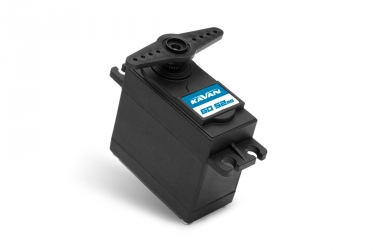

Kavan GO-52MG

Search Amazon Search eBay

Compatible Hardware

Amazon eBay

*Based on known specs.

Technical Specifications

Last Updated: 2026-10-25

Identity
Brand
Product Number	KAV20.52MG
Category	Hobby
Performance
Torque	6.0V 104.18 oz-in 4.8V 90.29 oz-in Below Average
Speed	6.0V 0.21 sec/60° 4.8V 0.23 sec/60° Bottom 10%
Physical
Weight	1.83 ozAbove Average
Dimensions	L 1.57 in W 0.79 in H 1.57 in
Drivetrain
Gears	Steel
Gear Spline/Teeth	25 T
Rotation/Support	Dual Bearings
Control & Signal
Modulation	Digital
Programmable	No
Electrical & Environment
Operating Voltage	4.8–6 V
Connectivity
Connector	JR (Universal) estimate
Wire Length	250 mm

Submit Missing Data Report an Error

Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.

Compatible Hardware

Amazon eBay

*Based on known specs.

Class Comparison

Torque	Below Average Stronger than 15% of 1060 Digital Standard servos at 4.8V
Speed	Bottom 10% Faster than 3% of 1045 Digital Standard servos at 4.8V
Weight	Above Average Lighter than 83% of 1880 Digital Standard servos

Performance Analysis

Shaft Power	0.73–0.92 W
Power Density	0.471 W/in³ More power-dense than 3% of 1768 Digital Standard servos
Torque Density	1.7364 oz-in/g Stronger than 16% of 1053 Digital Standard servos
Torque-to-Volume Ratio	46.37 oz-in/in³ Denser torque than 13% of 1058 Digital Standard servos
Speed-to-Weight	0.08361 (1/sec·g) Faster than 18% of 1038 Digital Standard servos
Speed-Torque Trade-off	20.76 Better balanced than 37% of 1034 Digital Standard servos
Torque Gain per Volt	12.82%/V More voltage-responsive (torque) than 32% of 873 Digital Standard servos
Speed Gain per Volt	7.92%/V More voltage-responsive (speed) than 7% of 874 Digital Standard servos
Voltage Range Width	1.2 V Wider voltage range than 8% of 1560 Digital Standard servos
