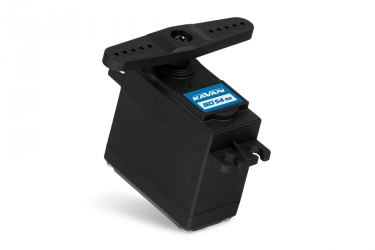

Kavan GO-54MG

Search Amazon Search eBay

Compatible Hardware

Amazon eBay

*Based on known specs.

Technical Specifications

Last Updated: 2026-10-26

Identity
Brand
Product Number	KAV20.54MG
Category	Hobby
Performance
Torque	6.0V 159.74 oz-in 4.8V 138.90 oz-in Below Average
Speed	6.0V 0.22 sec/60° 4.8V 0.24 sec/60° Bottom 10%
Physical
Weight	1.94 ozAbove Average
Dimensions	L 1.57 in W 0.79 in H 1.57 in
Case Material	Plastic
Drivetrain
Gears	Steel
Gear Spline/Teeth	25 T
Rotation/Support	Dual Bearings
Control & Signal
Modulation	Digital
Control System	PWM
Programmable	No
Electrical & Environment
Operating Voltage	4.8–6 V
Connectivity
Connector	JR (Universal) estimate

Submit Missing Data Report an Error

Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.

Compatible Hardware

Amazon eBay

*Based on known specs.

Class Comparison

Torque	Below Average Stronger than 29% of 1055 Digital Standard servos at 4.8V
Speed	Bottom 10% Faster than 3% of 1038 Digital Standard servos at 4.8V
Weight	Above Average Lighter than 76% of 1872 Digital Standard servos

Performance Analysis

Shaft Power	1.07–1.34 W
Power Density	0.689 W/in³ More power-dense than 9% of 1762 Digital Standard servos
Torque Density	2.5255 oz-in/g Stronger than 32% of 1048 Digital Standard servos
Torque-to-Volume Ratio	71.33 oz-in/in³ Denser torque than 27% of 1053 Digital Standard servos
Speed-to-Weight	0.07576 (1/sec·g) Faster than 10% of 1031 Digital Standard servos
Speed-Torque Trade-off	33.34 Better balanced than 56% of 1029 Digital Standard servos
Torque Gain per Volt	12.50%/V More voltage-responsive (torque) than 30% of 868 Digital Standard servos
Speed Gain per Volt	7.57%/V More voltage-responsive (speed) than 6% of 868 Digital Standard servos
Voltage Range Width	1.2 V Wider voltage range than 8% of 1552 Digital Standard servos
