Technical Specifications
Last Updated: 2026-10-24
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |

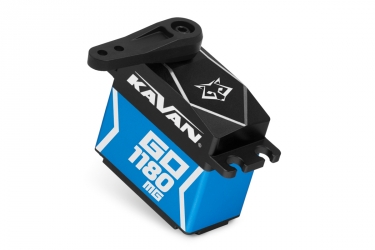

| Product Number | KAV20.1180MG |
| Category | Hobby |
| Performance | |
| Torque |
8.4V
416.70 oz-in
30.01 kg-cm
2.9 N-m
7.4V
388.92 oz-in
28.01 kg-cm
2.7 N-m
6.0V
333.36 oz-in
24.00 kg-cm
2.4 N-m
4.8V
305.58 oz-in
22.00 kg-cm
2.2 N-m
Above Average
|
| Speed |
8.4V
0.04 sec/60°
1,578.9 deg/s
263.2 RPM
7.4V
0.04 sec/60°
1,428.6 deg/s
238.1 RPM
6.0V
0.05 sec/60°
1,200.0 deg/s
200.0 RPM
4.8V
0.06 sec/60°
1,000.0 deg/s
166.7 RPM
Top 10%
|
| Physical | |
| Weight | 2.79 oz79.0 gBelow Average |
| Dimensions |
L 1.57 in W 0.79 in H 1.528 in L 39.9 mm W 20.1 mm H 38.8 mm |
| Case Material | Aluminum |
| Drivetrain | |
| Motor Type | Brushless |
| Gears | Titanium / Steel |
| Gear Spline/Teeth | 25 T |
| Rotation/Support | Triple Bearings |
| Control & Signal | |
| Modulation | Digital |
| Programmable | No |
| Electrical & Environment | |
| Operating Voltage | 4.8–8.4 V |
| Connectivity | |
| Connector | JR (Universal) estimate |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Class Comparison
| Torque | Above Average Stronger than 68% of 1055 Digital Standard servos at 4.8V |
| Speed | Top 10% Faster than 93% of 1038 Digital Standard servos at 4.8V |
| Weight | Below Average Lighter than 13% of 1872 Digital Standard servos |
Performance Analysis
| Shaft Power | 9.42–20.28 W |
| Power Density | 10.699 W/in³ More power-dense than 99% of 1762 Digital Standard servos |
| Torque Density | 3.8681 oz-in/g Stronger than 58% of 1048 Digital Standard servos |
| Torque-to-Volume Ratio | 161.24 oz-in/in³ Denser torque than 70% of 1053 Digital Standard servos |
| Speed-to-Weight | 0.21097 (1/sec·g) Faster than 89% of 1031 Digital Standard servos |
| Speed-Torque Trade-off | 18.33 Better balanced than 31% of 1029 Digital Standard servos |
| Torque Gain per Volt | 10.10%/V More voltage-responsive (torque) than 19% of 868 Digital Standard servos |
| Speed Gain per Volt | 16.08%/V More voltage-responsive (speed) than 52% of 868 Digital Standard servos |
| Voltage Range Width | 3.6 V Wider voltage range than 81% of 1552 Digital Standard servos |
