Technical Specifications
Last Updated: 2026-10-10
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |
| Product Number | KAV20.10S41MG |
| Category | Hobby |
| Performance | |
| Torque |
8.4V
145.85 oz-in
10.50 kg-cm
1.0 N-m
7.4V
125.01 oz-in
9.00 kg-cm
0.9 N-m
6.0V
97.23 oz-in
7.00 kg-cm
0.7 N-m
4.8V
83.34 oz-in
6.00 kg-cm
0.6 N-m
Above Average
|
| Speed |
8.4V
0.08 sec/60°
750.0 deg/s
125.0 RPM
7.4V
0.08 sec/60°
750.0 deg/s
125.0 RPM
6.0V
0.09 sec/60°
666.7 deg/s
111.1 RPM
4.8V
0.10 sec/60°
600.0 deg/s
100.0 RPM
Above Average
|
| Physical | |
| Weight | 1.45 oz41.0 gBottom 10% |
| Dimensions |
L 1.40 in W 0.59 in H 1.15 in L 35.6 mm W 15.0 mm H 29.2 mm |
| Case Material | Aluminum |
| Drivetrain | |
| Motor Type | Coreless |
| Gears | Titanium |
| Gear Spline/Teeth | 25 T |
| Rotation/Support | Dual Bearings |
| Control & Signal | |
| Modulation | Digital |
| Rotational Range | 180° |
| Pulse Width | 900-2100 µs |
| Neutral Position | 1500 µs |
| Programmable | Yes |
| Electrical & Environment | |
| Operating Voltage | 4.8–8.4 V |
| Connectivity | |
| Connector | JR (Universal) estimate |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Class Comparison
| Torque | Above Average Stronger than 72% of 262 Digital Mini servos at 4.8V |
| Speed | Above Average Faster than 66% of 263 Digital Mini servos at 4.8V |
| Weight | Bottom 10% Lighter than 9% of 466 Digital Mini servos |
Performance Analysis
| Shaft Power | 1.54–3.37 W |
| Power Density | 3.549 W/in³ More power-dense than 77% of 440 Digital Mini servos |
| Torque Density | 2.0327 oz-in/g Stronger than 34% of 258 Digital Mini servos |
| Torque-to-Volume Ratio | 87.74 oz-in/in³ Denser torque than 60% of 262 Digital Mini servos |
| Speed-to-Weight | 0.24390 (1/sec·g) Faster than 25% of 259 Digital Mini servos |
| Speed-Torque Trade-off | 8.33 Better balanced than 57% of 261 Digital Mini servos |
| Torque Gain per Volt | 20.84%/V More voltage-responsive (torque) than 77% of 232 Digital Mini servos |
| Speed Gain per Volt | 6.94%/V More voltage-responsive (speed) than 5% of 235 Digital Mini servos |
| Voltage Range Width | 3.6 V Wider voltage range than 85% of 351 Digital Mini servos |
Similar Active Servos

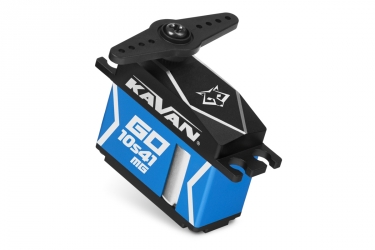

Reviews of Kavan GO-10S41MG
