Technical Specifications
Last Updated: 2026-10-23
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |

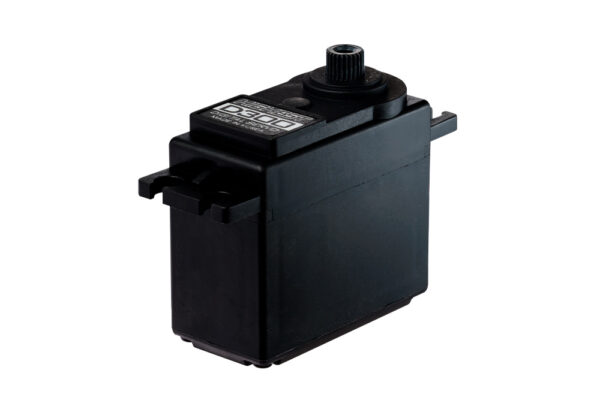

| Product Number | D300 |
| Category | Hobby |
| Performance | |
| Torque |
6.0V
106.93 oz-in
7.70 kg-cm
0.8 N-m
4.8V
94.43 oz-in
6.80 kg-cm
0.7 N-m
|
| Speed |
6.0V
0.10 sec/60°
600.0 deg/s
100.0 RPM
4.8V
0.12 sec/60°
500.0 deg/s
83.3 RPM
|
| Physical | |
| Weight | 1.43 oz40.5 gTop 10% |
| Dimensions |
L 1.56 in W 0.75 in H 1.50 in L 39.6 mm W 19.0 mm H 38.1 mm |
| Case Material | Plastic |
| Drivetrain | |
| Motor Type | Cored |
| Gears | Plastic |
| Rotation/Support | Dual Bearings |
| Control & Signal | |
| Modulation | Digital |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Class Comparison
| Weight | Top 10% Lighter than 95% of 1880 Digital Standard servos |
Performance Analysis
| Shaft Power | 1.46–1.98 W |
| Power Density | 1.127 W/in³ More power-dense than 21% of 1768 Digital Standard servos |
| Torque Density | 2.3316 oz-in/g |
| Torque-to-Volume Ratio | 53.81 oz-in/in³ |
| Speed-to-Weight | 0.20576 (1/sec·g) |
| Speed-Torque Trade-off | 11.33 |
