Technical Specifications
Last Updated: 2026-10-26
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |

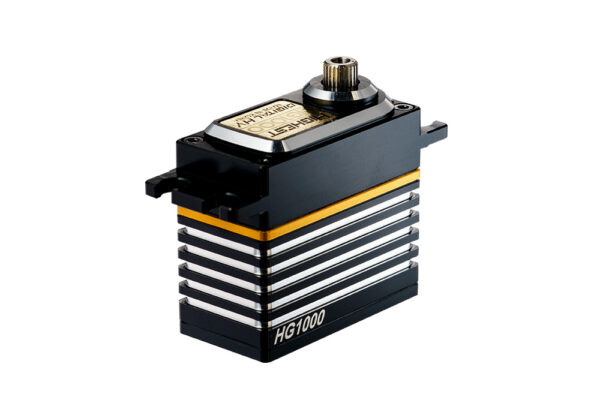

| Product Number | HG1000 |
| Category | Hobby |
| Performance | |
| Torque |
7.4V
115.27 oz-in
8.30 kg-cm
0.8 N-m
6.0V
93.05 oz-in
6.70 kg-cm
0.7 N-m
Below Average
|
| Speed |
7.4V
0.04 sec/60°
1,500.0 deg/s
250.0 RPM
6.0V
0.05 sec/60°
1,200.0 deg/s
200.0 RPM
Top 10%
|
| Physical | |
| Weight | 2.60 oz73.8 gBelow Average |
| Dimensions |
L 1.56 in W 0.79 in H 1.52 in L 39.6 mm W 20.1 mm H 38.6 mm |
| Case Material | Aluminum |
| Drivetrain | |
| Motor Type | Coreless |
| Gears | Steel |
| Gear Spline/Teeth | 25 T |
| Rotation/Support | Dual Bearings |
| Control & Signal | |
| Modulation | Digital |
| Neutral Position | 760 µs |
| Refresh Rate | 560 Hz |
| Control System | PWM |
| Electrical & Environment | |
| Operating Voltage | 6–7.4 V |
| Temperature | -10–60 °C14–140 °F |
| Connectivity | |
| Wire Length | 300 mm11.81 in |
| Origin | |
| Country of Origin | South Korea |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Class Comparison
| Torque | Below Average Stronger than 16% of 1060 Digital Standard servos at 6.0V |
| Speed | Top 10% Faster than 97% of 1045 Digital Standard servos at 6.0V |
| Weight | Below Average Lighter than 23% of 1880 Digital Standard servos |
Performance Analysis
| Shaft Power | 3.44–5.33 W |
| Power Density | 2.844 W/in³ More power-dense than 58% of 1768 Digital Standard servos |
| Torque Density | 1.2608 oz-in/g Stronger than 7% of 1053 Digital Standard servos |
| Torque-to-Volume Ratio | 49.67 oz-in/in³ Denser torque than 15% of 1058 Digital Standard servos |
| Speed-to-Weight | 0.27100 (1/sec·g) Faster than 93% of 1038 Digital Standard servos |
| Speed-Torque Trade-off | 4.65 Better balanced than 6% of 1034 Digital Standard servos |
| Torque Gain per Volt | 17.06%/V More voltage-responsive (torque) than 62% of 873 Digital Standard servos |
| Speed Gain per Volt | 17.86%/V More voltage-responsive (speed) than 64% of 874 Digital Standard servos |
| Voltage Range Width | 1.4 V Wider voltage range than 27% of 1560 Digital Standard servos |
