Technical Specifications
Last Updated: 2026-10-10
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |

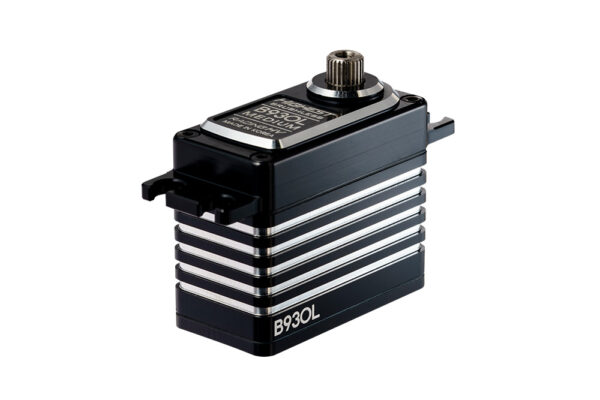

| Product Number | B930L |
| Category | Hobby |
| Performance | |
| Torque |
7.4V
362.46 oz-in
26.10 kg-cm
2.6 N-m
6.0V
293.30 oz-in
21.12 kg-cm
2.1 N-m
|
| Speed |
7.4V
0.08 sec/60°
750.0 deg/s
125.0 RPM
6.0V
0.10 sec/60°
600.0 deg/s
100.0 RPM
|
| Physical | |
| Weight | 2.20 oz62.3 gAverage |
| Dimensions |
L 1.56 in W 0.79 in H 1.39 in L 39.6 mm W 20.1 mm H 35.3 mm |
| Case Material | Aluminum |
| Drivetrain | |
| Motor Type | Brushless |
| Gears | Steel |
| Gear Spline/Teeth | 25 T |
| Rotation/Support | Dual Bearings |
| Control & Signal | |
| Modulation | Digital |
| Electrical & Environment | |
| Operating Voltage | 4.8–8.4 V |
| Temperature | -10–60 °C14–140 °F |
| Connectivity | |
| Wire Length | 120 mm4.72 in |
| Origin | |
| Country of Origin | South Korea |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Class Comparison
| Weight | Average Lighter than 50% of 1902 Digital Standard servos |
Performance Analysis
| Shaft Power | 5.42–8.38 W |
| Power Density | 4.890 W/in³ More power-dense than 78% of 1759 Digital Standard servos |
| Torque Density | 4.7079 oz-in/g |
| Torque-to-Volume Ratio | 171.22 oz-in/in³ |
| Speed-to-Weight | 0.16051 (1/sec·g) |
| Speed-Torque Trade-off | 29.33 |
| Voltage Range Width | 3.6 V Wider voltage range than 81% of 1539 Digital Standard servos |
