Technical Specifications
Last Updated: 2026-10-26
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |

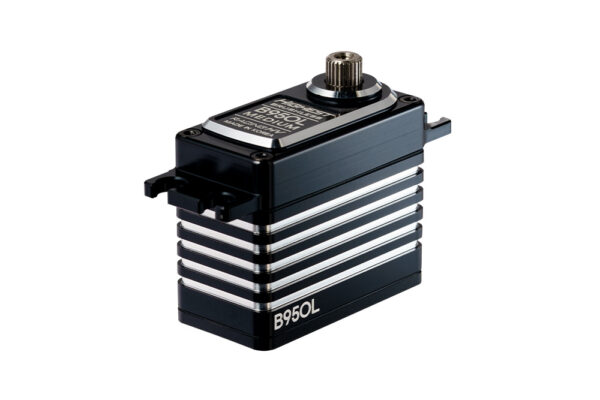

| Product Number | B950L |
| Category | Hobby |
| Performance | |
| Torque |
7.4V
431.90 oz-in
31.10 kg-cm
3.0 N-m
6.0V
340.24 oz-in
24.50 kg-cm
2.4 N-m
|
| Speed |
7.4V
0.09 sec/60°
666.7 deg/s
111.1 RPM
6.0V
0.12 sec/60°
500.0 deg/s
83.3 RPM
|
| Physical | |
| Weight | 2.20 oz62.3 gAverage |
| Dimensions |
L 1.56 in W 0.79 in H 1.39 in L 39.6 mm W 20.1 mm H 35.3 mm |
| Case Material | Aluminum |
| Drivetrain | |
| Motor Type | Brushless |
| Gears | Steel |
| Gear Spline/Teeth | 25 T |
| Rotation/Support | Dual Bearings |
| Control & Signal | |
| Modulation | Digital |
| Electrical & Environment | |
| Operating Voltage | 4.8–8.4 V |
| Temperature | -10–60 °C14–140 °F |
| Connectivity | |
| Wire Length | 120 mm4.72 in |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Class Comparison
| Weight | Average Lighter than 51% of 1872 Digital Standard servos |
Performance Analysis
| Shaft Power | 5.24–8.87 W |
| Power Density | 5.180 W/in³ More power-dense than 80% of 1762 Digital Standard servos |
| Torque Density | 5.4613 oz-in/g |
| Torque-to-Volume Ratio | 198.62 oz-in/in³ |
| Speed-to-Weight | 0.13376 (1/sec·g) |
| Speed-Torque Trade-off | 40.83 |
| Voltage Range Width | 3.6 V Wider voltage range than 80% of 1552 Digital Standard servos |
Similar Active Servos
JX Servo PDI-HV5932MG-180
Weight: 59.3 grams
Dimensions: 1.594" x 0.807" x 1.437"
Size Class: Standard
