Technical Specifications
Last Updated: 2026-10-10
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |
| Product Number | FHS04 |
| Category | Hobby |
| Physical | |
| Weight | 0.15 oz4.3 gTop 10% |
| Dimensions |
L 0.80 in W 0.33 in H 0.76 in L 20.3 mm W 8.4 mm H 19.3 mm |
| Drivetrain | |
| Motor Type | Coreless |
| Rotation Mode | Positional |
| Control & Signal | |
| Modulation | Digital |
| Rotational Range | 180° |
| Mechanical Limit | 120° |
| Pulse Width | 1000-2000 µs |
| Angle Sensor | Potentiometer |
| Control System | PWM |
| Electrical & Environment | |
| Operating Voltage | 3.4–6 V |
| Temperature | -10–50 °C14–122 °F |
| Connectivity | |
| Connector | JR (Universal) estimate |
| Origin | |
| Country of Origin | China |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Class Comparison
| Weight | Top 10% Lighter than 95% of 620 Digital Micro servos |
Performance Analysis
| Voltage Range Width | 2.6 V Wider voltage range than 67% of 511 Digital Micro servos |
Similar Active Servos

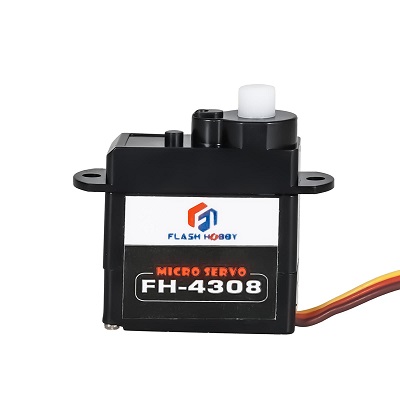

Reviews of Flash Hobby FH-4308
