Technical Specifications
Last Updated: 2026-10-10
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |
| Product Number | FHS05 |
| Category | Hobby |
| Physical | |
| Weight | 0.22 oz6.2 gAbove Average |
| Dimensions |
L 0.84 in W 0.45 in H 0.79 in L 21.3 mm W 11.4 mm H 20.1 mm |
| Drivetrain | |
| Motor Type | Coreless |
| Gears | Plastic |
| Rotation Mode | Positional |
| Control & Signal | |
| Modulation | Digital |
| Rotational Range | 180° |
| Mechanical Limit | 120° |
| Pulse Width | 800-2200 µs |
| Angle Sensor | Potentiometer |
| Control System | PWM |
| Electrical & Environment | |
| Operating Voltage | 4.8–6 V |
| Temperature | -10–50 °C14–122 °F |
| Connectivity | |
| Connector | JR (Universal) estimate |
| Origin | |
| Country of Origin | China |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Class Comparison
| Weight | Above Average Lighter than 81% of 620 Digital Micro servos |
Performance Analysis
| Voltage Range Width | 1.2 V Wider voltage range than 10% of 511 Digital Micro servos |
Similar Active Servos

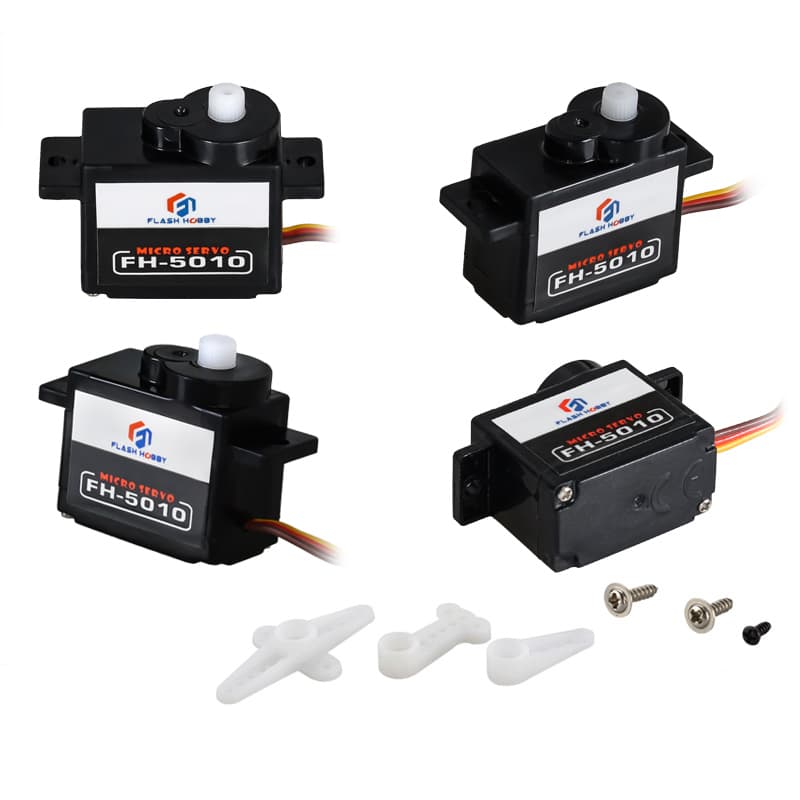

Reviews of Flash Hobby FH-5010
