Technical Specifications
Last Updated: 2026-10-26
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |

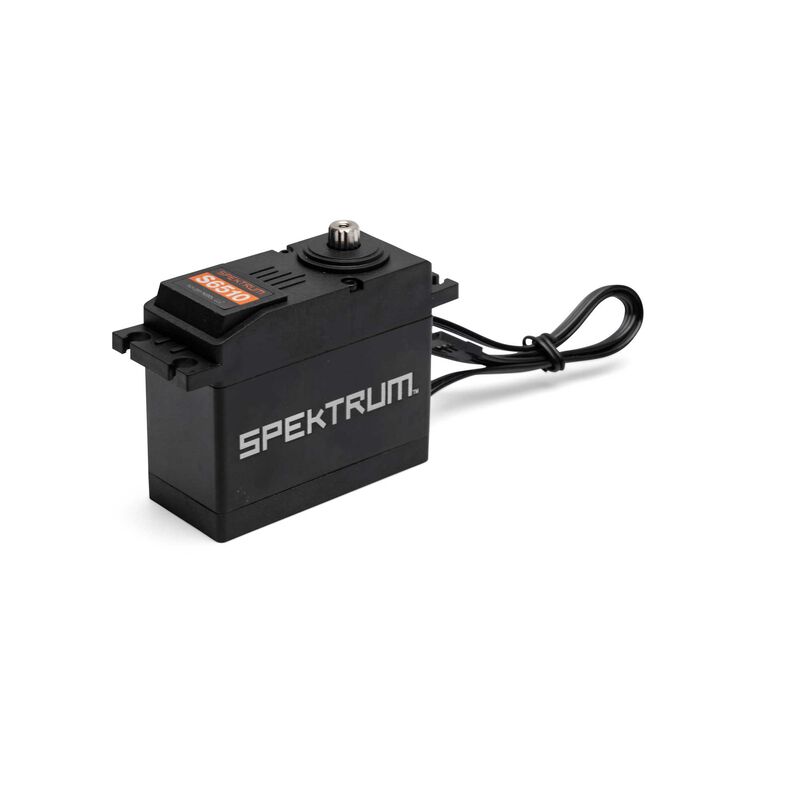

| Product Number | SPMS6510 |
| Category | Hobby |
| Discontinued | Yes |
| Performance | |
| Torque |
8.4V
820.00 oz-in
59.05 kg-cm
5.8 N-m
7.4V
760.00 oz-in
54.73 kg-cm
5.4 N-m
6.0V
640.00 oz-in
46.08 kg-cm
4.5 N-m
Below Average
|
| Speed |
8.4V
0.14 sec/60°
428.6 deg/s
71.4 RPM
7.4V
0.16 sec/60°
375.0 deg/s
62.5 RPM
6.0V
0.20 sec/60°
300.0 deg/s
50.0 RPM
Average
|
| Stall Current | 8.4–12.4 A8400–12400 mABelow Average |
| Physical | |
| Weight | 7.20 oz204.0 gAverage |
| Dimensions |
L 2.598 in W 1.181 in H 2.283 in L 66.0 mm W 30.0 mm H 58.0 mm |
| Drivetrain | |
| Motor Type | Coreless Brushed |
| Gears | Metal |
| Gear Spline/Teeth | 15 T |
| Rotation/Support | Dual Bearings |
| Control & Signal | |
| Modulation | Digital |
| Neutral Position | 1520 µs |
| Refresh Rate | 333 Hz |
| Electrical & Environment | |
| Operating Voltage | 6–8.4 V |
| Water Rating | Water Resistant |
| Certification | CE | ROHS | FCC | EMC |
| Idle Current | 0.100 A100 mA |
| Connectivity | |
| Connector | JR (Universal) |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Class Comparison
| Torque | Below Average Stronger than 32% of 83 Digital Giant servos at 6.0V |
| Speed | Average Faster than 41% of 84 Digital Giant servos at 6.0V |
| Weight | Average Lighter than 46% of 164 Digital Giant servos |
| Stall Current | Below Average Lower draw than 11% of 106 Digital Giant servos |
Performance Analysis
| Shaft Power | 5.92–10.83 W |
| Power Density | 1.545 W/in³ More power-dense than 42% of 131 Digital Giant servos |
| Torque Density | 3.1373 oz-in/g Stronger than 39% of 80 Digital Giant servos |
| Torque-to-Volume Ratio | 91.32 oz-in/in³ Denser torque than 38% of 83 Digital Giant servos |
| Speed-to-Weight | 0.02451 (1/sec·g) Faster than 38% of 81 Digital Giant servos |
| Speed-Torque Trade-off | 128.00 Better balanced than 41% of 80 Digital Giant servos |
| Current-per-Torque Ratio | 0.0194 A/oz-in More efficient than 9% of 47 Digital Giant servos |
| Torque Gain per Volt | 11.72%/V More voltage-responsive (torque) than 51% of 64 Digital Giant servos |
| Speed Gain per Volt | 17.86%/V More voltage-responsive (speed) than 88% of 66 Digital Giant servos |
| Voltage Range Width | 2.4 V Wider voltage range than 27% of 155 Digital Giant servos |
Similar Active Servos
Reviews (2)
Includes 2 reviews aggregated from around the web.
There are very few reviews for this servo on the web. A Reddit user who tested it on his Traxxas Maxx found it satisfactory.
