Technical Specifications
Last Updated: 2026-10-26
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |
| Product Number | 27119 |
| Category | Hobby |
| Discontinued | Yes |
| Performance | |
| Torque |
8.4V
243.08 oz-in
17.50 kg-cm
1.7 N-m
7.4V
208.35 oz-in
15.00 kg-cm
1.5 N-m
6.0V
159.74 oz-in
11.50 kg-cm
1.1 N-m
Average
|
| Speed |
8.4V
0.05 sec/60°
1,200.0 deg/s
200.0 RPM
7.4V
0.06 sec/60°
1,000.0 deg/s
166.7 RPM
6.0V
0.07 sec/60°
857.1 deg/s
142.9 RPM
Above Average
|
| Physical | |
| Weight | 1.83 oz52.0 gAverage |
| Dimensions |
L 1.61 in W 0.79 in H 1.05 in L 40.9 mm W 20.1 mm H 26.7 mm |
| Case Material | Aluminum |
| Drivetrain | |
| Motor Type | Brushless |
| Gears | Metal |
| Gear Spline/Teeth | 25 T estimate |
| Rotation/Support | Dual Bearings |
| Control & Signal | |
| Modulation | Digital |
| Electrical & Environment | |
| Operating Voltage | 6–8.4 V |
| Water Rating | Water Resistant |
| Origin | |
| Country of Origin | USA |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Class Comparison
| Torque | Average Stronger than 55% of 186 Digital Low Profile servos at 6.0V |
| Speed | Above Average Faster than 84% of 183 Digital Low Profile servos at 6.0V |
| Weight | Average Lighter than 51% of 304 Digital Low Profile servos |
Performance Analysis
| Shaft Power | 4.22–8.99 W |
| Power Density | 6.731 W/in³ More power-dense than 80% of 273 Digital Low Profile servos |
| Torque Density | 3.0719 oz-in/g Stronger than 54% of 185 Digital Low Profile servos |
| Torque-to-Volume Ratio | 119.61 oz-in/in³ Denser torque than 57% of 186 Digital Low Profile servos |
| Speed-to-Weight | 0.27473 (1/sec·g) Faster than 83% of 182 Digital Low Profile servos |
| Speed-Torque Trade-off | 11.18 Better balanced than 31% of 183 Digital Low Profile servos |
| Torque Gain per Volt | 21.74%/V More voltage-responsive (torque) than 89% of 164 Digital Low Profile servos |
| Speed Gain per Volt | 16.67%/V More voltage-responsive (speed) than 67% of 163 Digital Low Profile servos |
| Voltage Range Width | 2.4 V Wider voltage range than 43% of 276 Digital Low Profile servos |
Similar Active Servos

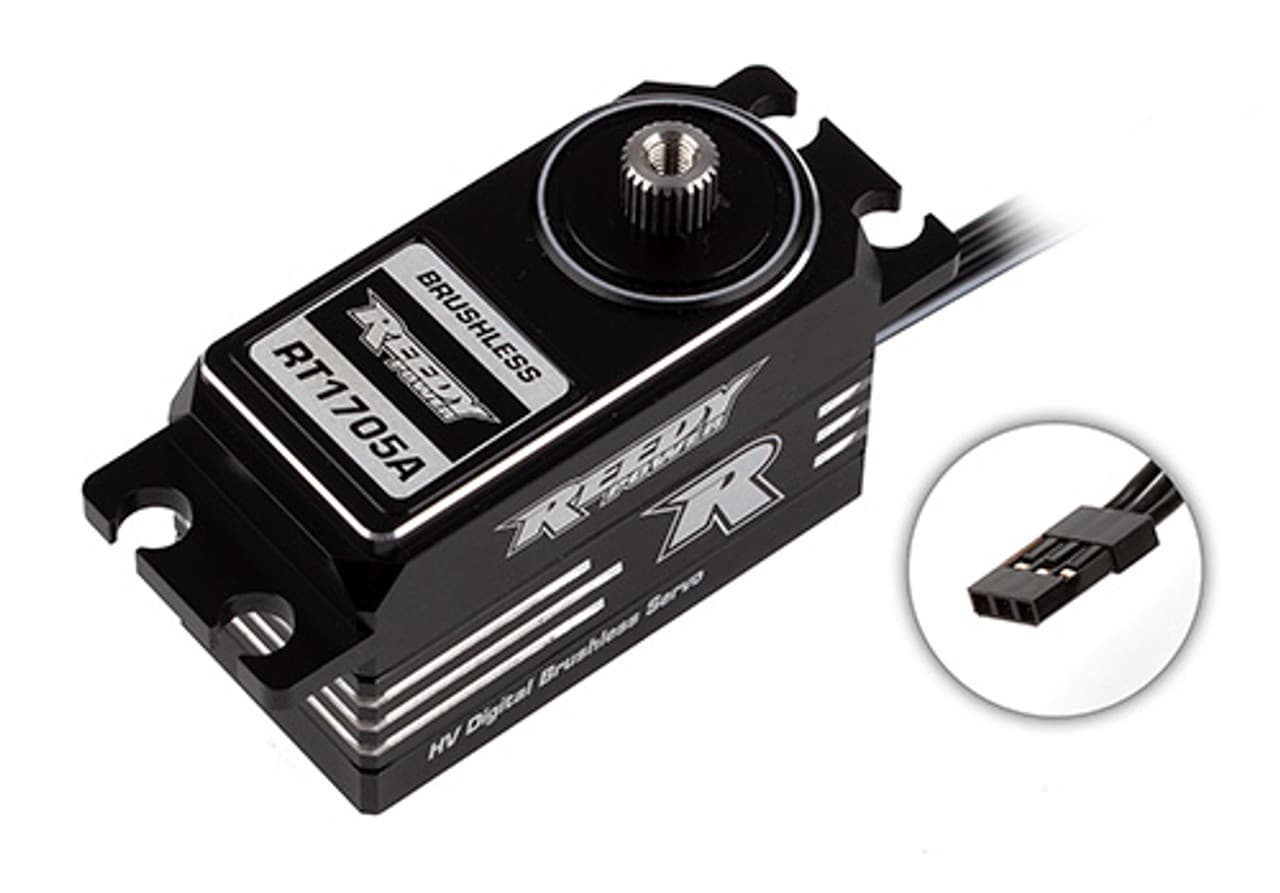

Reviews of Reedy RT1705A
