Technical Specifications
Last Updated: 2026-10-22
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |
| Product Number | 27101 |
| Category | Hobby |
| Discontinued | Yes |
| Performance | |
| Torque |
7.4V
212.52 oz-in
15.30 kg-cm
1.5 N-m
6.0V
187.52 oz-in
13.50 kg-cm
1.3 N-m
Average
|
| Speed |
7.4V
0.08 sec/60°
750.0 deg/s
125.0 RPM
6.0V
0.10 sec/60°
600.0 deg/s
100.0 RPM
Above Average
|
| Physical | |
| Weight | 2.17 oz61.6 gAverage |
| Dimensions |
L 1.56 in W 0.79 in H 1.52 in L 39.6 mm W 20.1 mm H 38.6 mm |
| Case Material | Aluminum |
| Drivetrain | |
| Motor Type | Coreless |
| Gears | Metal |
| Gear Spline/Teeth | 25 T |
| Rotation/Support | Dual Bearings |
| Control & Signal | |
| Modulation | Digital |
| Electrical & Environment | |
| Operating Voltage | 6–7.4 V |
| Power Source | LiPo |
| Regulator Type | BEC |
| Water Rating | Water Resistant |
| Origin | |
| Country of Origin | USA |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Class Comparison
| Torque | Average Stronger than 42% of 1060 Digital Standard servos at 6.0V |
| Speed | Above Average Faster than 76% of 1045 Digital Standard servos at 6.0V |
| Weight | Average Lighter than 55% of 1880 Digital Standard servos |
Performance Analysis
| Shaft Power | 3.47–4.91 W |
| Power Density | 2.622 W/in³ More power-dense than 54% of 1768 Digital Standard servos |
| Torque Density | 3.0442 oz-in/g Stronger than 44% of 1053 Digital Standard servos |
| Torque-to-Volume Ratio | 100.10 oz-in/in³ Denser torque than 43% of 1058 Digital Standard servos |
| Speed-to-Weight | 0.16234 (1/sec·g) Faster than 79% of 1038 Digital Standard servos |
| Speed-Torque Trade-off | 18.75 Better balanced than 33% of 1034 Digital Standard servos |
| Torque Gain per Volt | 9.52%/V More voltage-responsive (torque) than 15% of 873 Digital Standard servos |
| Speed Gain per Volt | 17.86%/V More voltage-responsive (speed) than 65% of 874 Digital Standard servos |
| Voltage Range Width | 1.4 V Wider voltage range than 28% of 1560 Digital Standard servos |
Similar Active Servos

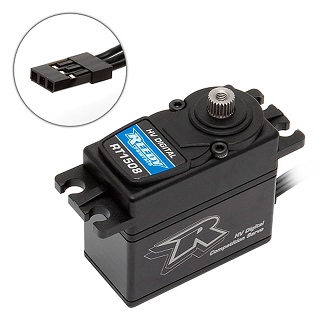

Reviews of Reedy RT1508
