Technical Specifications
Last Updated: 2026-10-09
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |
| Product Number | 27152 |
| Category | Hobby |
| Performance | |
| Torque |
7.4V
347.25 oz-in
25.00 kg-cm
2.5 N-m
5.0V
294.47 oz-in
21.20 kg-cm
2.1 N-m
Above Average
|
| Speed |
7.4V
0.12 sec/60°
500.0 deg/s
83.3 RPM
5.0V
0.14 sec/60°
428.6 deg/s
71.4 RPM
Average
|
| Physical | |
| Weight | 2.36 oz67.0 gAverage |
| Dimensions |
L 1.57 in W 0.79 in H 1.59 in L 39.9 mm W 20.1 mm H 40.4 mm |
| Case Material | Aluminum |
| Drivetrain | |
| Gears | Metal |
| Gear Spline/Teeth | 25 T estimate |
| Rotation/Support | Dual Bearings |
| Control & Signal | |
| Modulation | Digital |
| Electrical & Environment | |
| Operating Voltage | 5–7.4 V |
| Water Rating | Water Resistant |
| Origin | |
| Country of Origin | USA |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Class Comparison
| Torque | Above Average Stronger than 66% of 1043 Digital Standard servos at 5.0V |
| Speed | Average Faster than 46% of 1041 Digital Standard servos at 5.0V |
| Weight | Average Lighter than 38% of 1902 Digital Standard servos |
Performance Analysis
| Shaft Power | 3.89–5.35 W |
| Power Density | 2.713 W/in³ More power-dense than 55% of 1759 Digital Standard servos |
| Torque Density | 4.3951 oz-in/g Stronger than 67% of 1036 Digital Standard servos |
| Torque-to-Volume Ratio | 149.32 oz-in/in³ Denser torque than 63% of 1042 Digital Standard servos |
| Speed-to-Weight | 0.10661 (1/sec·g) Faster than 41% of 1033 Digital Standard servos |
| Speed-Torque Trade-off | 41.22 Better balanced than 66% of 1031 Digital Standard servos |
| Torque Gain per Volt | 7.47%/V More voltage-responsive (torque) than 10% of 850 Digital Standard servos |
| Speed Gain per Volt | 6.94%/V More voltage-responsive (speed) than 5% of 871 Digital Standard servos |
| Voltage Range Width | 2.4 V Wider voltage range than 50% of 1539 Digital Standard servos |
Similar Active Servos

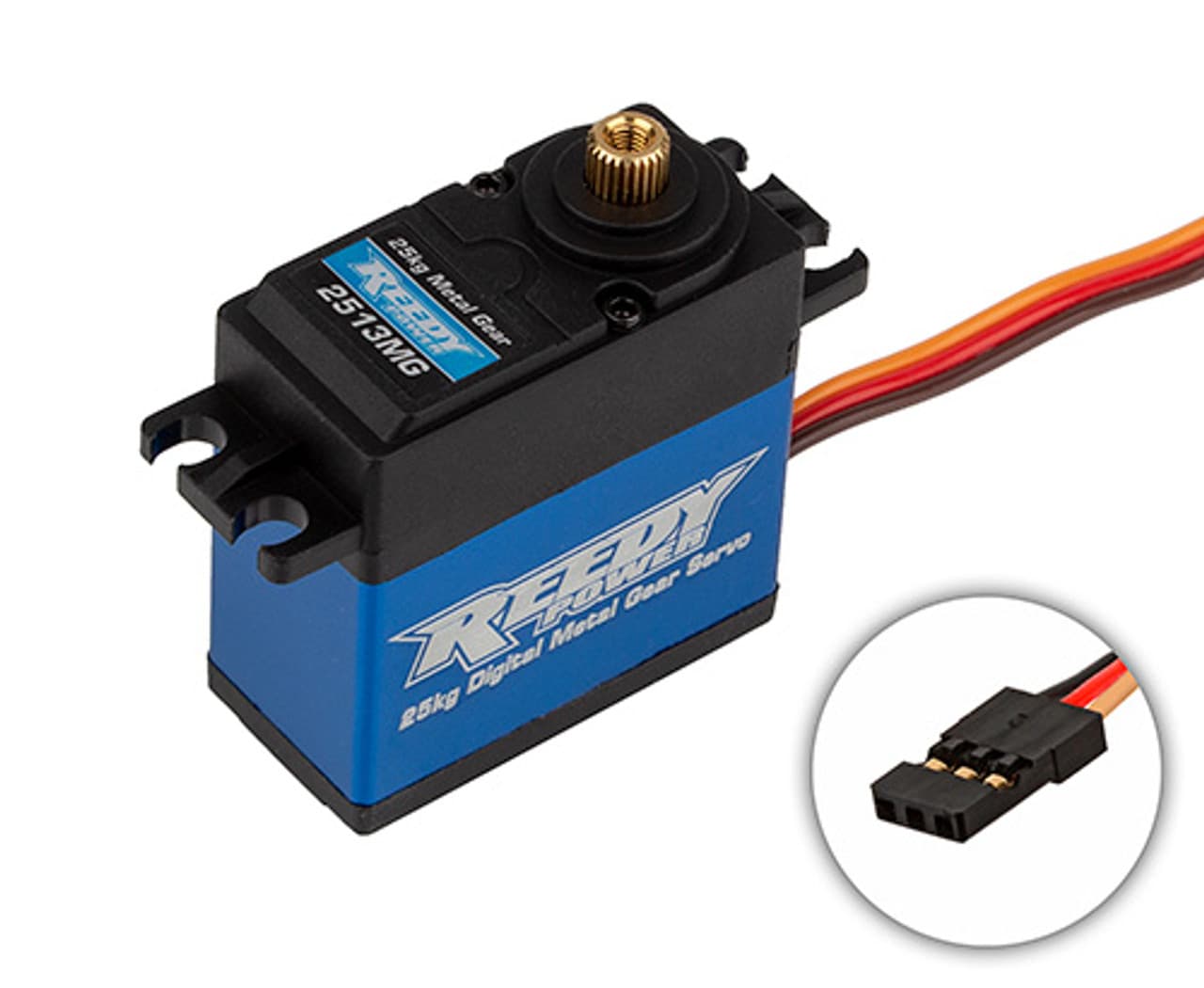

Reviews of Reedy 2513MG
