Technical Specifications
Last Updated: 2026-10-10
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |
| Product Number | 27116 |
| Category | Hobby |
| Discontinued | Yes |
| Performance | |
| Torque |
7.4V
322.25 oz-in
23.20 kg-cm
2.3 N-m
6.0V
268.08 oz-in
19.30 kg-cm
1.9 N-m
Average
|
| Speed |
7.4V
0.12 sec/60°
500.0 deg/s
83.3 RPM
6.0V
0.15 sec/60°
400.0 deg/s
66.7 RPM
Average
|
| Physical | |
| Weight | 2.22 oz63.0 gAverage |
| Dimensions |
L 1.56 in W 0.79 in H 1.52 in L 39.6 mm W 20.1 mm H 38.6 mm |
| Case Material | Aluminum |
| Drivetrain | |
| Motor Type | Coreless |
| Gears | Metal |
| Gear Spline/Teeth | 25 T estimate |
| Rotation Mode | Positional |
| Rotation/Support | Dual Bearings |
| Control & Signal | |
| Modulation | Digital |
| Rotational Range | 120° |
| Electrical & Environment | |
| Operating Voltage | 6–7.4 V |
| Regulator Type | BEC |
| Water Rating | Water Resistant |
| Origin | |
| Country of Origin | USA |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Class Comparison
| Torque | Average Stronger than 61% of 1043 Digital Standard servos at 6.0V |
| Speed | Average Faster than 38% of 1041 Digital Standard servos at 6.0V |
| Weight | Average Lighter than 48% of 1902 Digital Standard servos |
Performance Analysis
| Shaft Power | 3.30–4.97 W |
| Power Density | 2.651 W/in³ More power-dense than 54% of 1759 Digital Standard servos |
| Torque Density | 4.2552 oz-in/g Stronger than 65% of 1036 Digital Standard servos |
| Torque-to-Volume Ratio | 143.11 oz-in/in³ Denser torque than 61% of 1042 Digital Standard servos |
| Speed-to-Weight | 0.10582 (1/sec·g) Faster than 40% of 1033 Digital Standard servos |
| Speed-Torque Trade-off | 40.21 Better balanced than 65% of 1031 Digital Standard servos |
| Torque Gain per Volt | 14.43%/V More voltage-responsive (torque) than 41% of 850 Digital Standard servos |
| Speed Gain per Volt | 17.86%/V More voltage-responsive (speed) than 65% of 871 Digital Standard servos |
| Voltage Range Width | 1.4 V Wider voltage range than 27% of 1539 Digital Standard servos |
Similar Active Servos

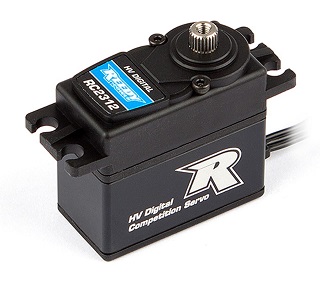

Reviews of Reedy RC2312
