Technical Specifications
Last Updated: 2026-10-25
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |
| Product Number | 27110 |
| Category | Hobby |
| Discontinued | Yes |
| Performance | |
| Torque |
7.4V
97.23 oz-in
7.00 kg-cm
0.7 N-m
6.0V
83.34 oz-in
6.00 kg-cm
0.6 N-m
Below Average
|
| Speed |
7.4V
0.12 sec/60°
500.0 deg/s
83.3 RPM
6.0V
0.14 sec/60°
428.6 deg/s
71.4 RPM
Average
|
| Physical | |
| Weight | 1.83 oz52.0 gAbove Average |
| Dimensions |
L 1.61 in W 0.79 in H 1.50 in L 40.9 mm W 20.1 mm H 38.1 mm |
| Case Material | Plastic |
| Drivetrain | |
| Gears | Metal |
| Gear Spline/Teeth | 25 T estimate |
| Rotation/Support | Dual Bearings |
| Control & Signal | |
| Modulation | Digital |
| Electrical & Environment | |
| Operating Voltage | 6–7.4 V |
| Regulator Type | BEC |
| Water Rating | Water Resistant |
| Connectivity | |
| Connector | Futaba J |
| Origin | |
| Country of Origin | USA |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Class Comparison
| Torque | Below Average Stronger than 14% of 1060 Digital Standard servos at 6.0V |
| Speed | Average Faster than 48% of 1045 Digital Standard servos at 6.0V |
| Weight | Above Average Lighter than 83% of 1880 Digital Standard servos |
Performance Analysis
| Shaft Power | 1.10–1.50 W |
| Power Density | 0.785 W/in³ More power-dense than 12% of 1768 Digital Standard servos |
| Torque Density | 1.6027 oz-in/g Stronger than 12% of 1053 Digital Standard servos |
| Torque-to-Volume Ratio | 43.68 oz-in/in³ Denser torque than 11% of 1058 Digital Standard servos |
| Speed-to-Weight | 0.13736 (1/sec·g) Faster than 66% of 1038 Digital Standard servos |
| Speed-Torque Trade-off | 11.67 Better balanced than 16% of 1034 Digital Standard servos |
| Torque Gain per Volt | 11.90%/V More voltage-responsive (torque) than 27% of 873 Digital Standard servos |
| Speed Gain per Volt | 11.90%/V More voltage-responsive (speed) than 26% of 874 Digital Standard servos |
| Voltage Range Width | 1.4 V Wider voltage range than 28% of 1560 Digital Standard servos |
Similar Active Servos

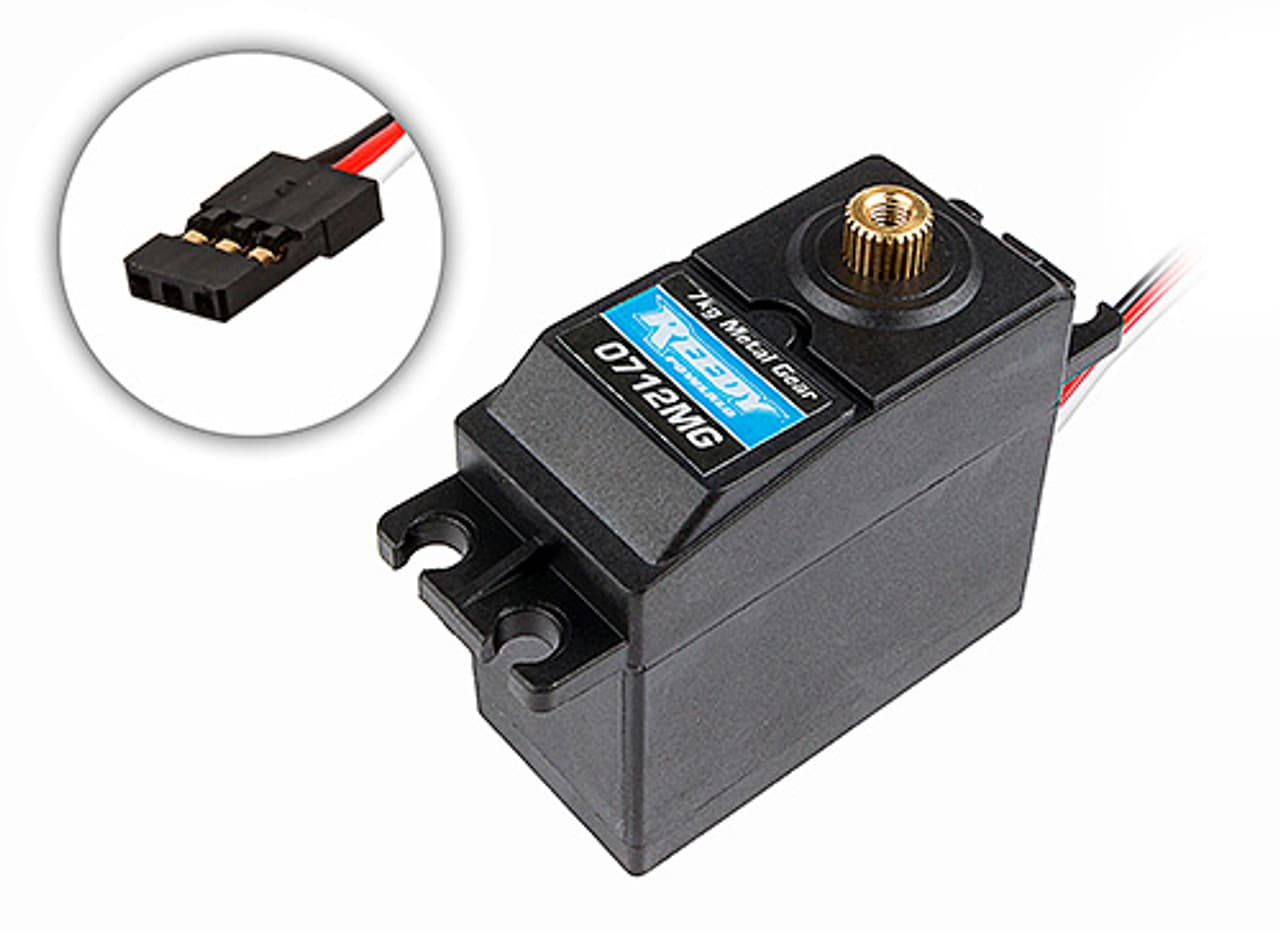

Reviews of Reedy 0712MG
