Technical Specifications
Last Updated: 2026-07-10
|
Identity
Performance
Physical
Drivetrain
Control & Signal
Electrical & Environment
Connectivity
Origin
Preferences are saved automatically.
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |

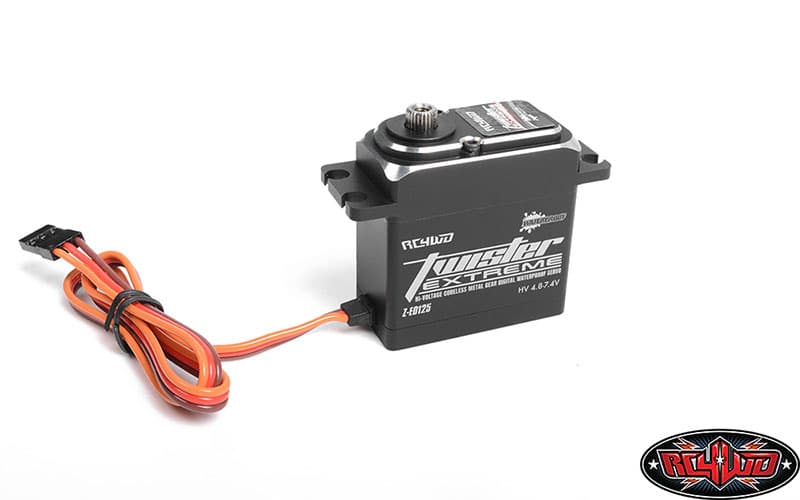

| Product Number | Z-E0125 |
| Category | Hobby |
| Performance | |
| Torque |
7.4V
652.83 oz-in
47.01 kg-cm
4.6 N-m
6.0V
527.82 oz-in
38.01 kg-cm
3.7 N-m
|
| Speed |
7.4V
0.09 sec/60°
666.7 deg/s
111.1 RPM
6.0V
0.10 sec/60°
600.0 deg/s
100.0 RPM
|
| Running Current | (add) |
| Stall Current | 4–6 A4000–6000 mA |
| Physical | |
| Weight | 2.97 oz84.3 g |
| Dimensions |
L 1.57 in W 0.78 in H 1.65 in L 39.9 mm W 19.8 mm H 41.9 mm |
| Case Material | Aluminum |
| Drivetrain | |
| Motor Type | Coreless |
| Motor Drive | (add) |
| Gears | Metal |
| Gear Spline/Teeth | 25 T |
| Shaft Size | (add) |
| Rotation Mode | (add) |
| Rotation/Support | (add) |
| Backlash | (add) |
| Control & Signal | |
| Modulation | Digital |
| Direction | (add) |
| Rotational Range | (add) |
| Mechanical Limit | (add) |
| Pulse Cycle | (add) |
| Pulse Width | 500-2500 µs |
| Neutral Position | (add) |
| Dead Band | (add) |
| Refresh Rate | (add) |
| Angle Sensor | (add) |
| Control System | PWM |
| Programmable | (add) |
| Signal Voltage | (add) |
| Electrical & Environment | |
| Operating Voltage | 4.8–7.4 V |
| Power Source | (add) |
| Regulator Type | (add) |
| Temperature | (add) |
| Water Rating | Waterproof |
| Certification | (add) |
| Idle Current | (add) |
| Connectivity | |
| Connector | (add) |
| Wire Length | 320 mm12.6 in |
| Origin | |
| Country of Origin | USA |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Performance Analysis
| Shaft Power | 9.76–13.41 W |
| Torque Density | 6.2612 oz-in/g |
| Torque-to-Volume Ratio | 261.22 oz-in/in³ |
| Power Density | 6.638 W/in³ More power-dense than 89% of the 1644 Digital Standard servos in the database |
| Speed-to-Weight | 0.11862 (1/sec·g) |
| Speed-Torque Trade-off | 52.78 |
| Current-per-Torque Ratio | 0.0114 A/oz-in |
| Voltage Range Width | 2.6 V Wider voltage range than 66% of the 1269 Digital Standard servos in the database |
