Technical Specifications
Last Updated: 2026-07-10
|
Identity
Performance
Physical
Drivetrain
Control & Signal
Electrical & Environment
Connectivity
Origin
Preferences are saved automatically.
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |

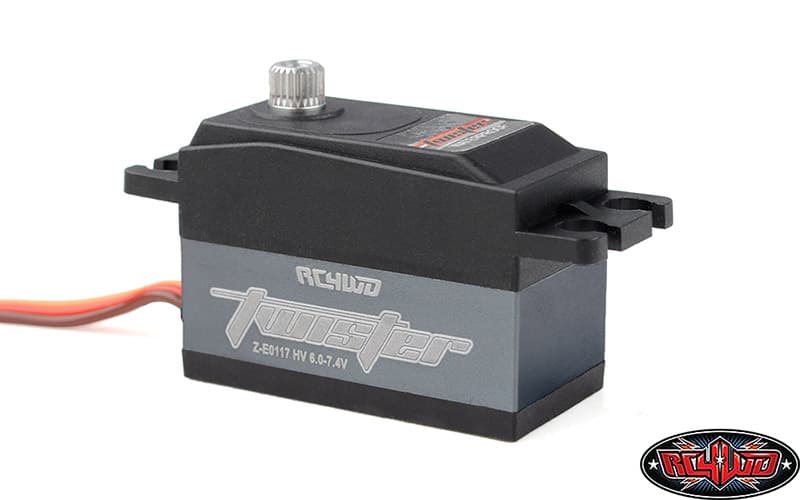

| Product Number | Z-E0117 |
| Category | Hobby |
| Performance | |
| Torque |
6.0V
127.79 oz-in
9.20 kg-cm
0.9 N-m
4.8V
108.34 oz-in
7.80 kg-cm
0.8 N-m
|
| Speed |
4.8V0.13 sec/60°461.5 deg/s76.9 RPM |
| Running Current | (add) |
| Stall Current | 0.7–0.9 A700–900 mA |
| Physical | |
| Weight | 2.03 oz57.5 g |
| Dimensions |
L 2.14 in W 0.78 in H 1.29 in L 54.4 mm W 19.8 mm H 32.8 mm |
| Case Material | Aluminum |
| Drivetrain | |
| Motor Type | (add) |
| Motor Drive | (add) |
| Gears | Metal |
| Gear Spline/Teeth | 25 T |
| Shaft Size | (add) |
| Rotation Mode | (add) |
| Rotation/Support | (add) |
| Backlash | (add) |
| Control & Signal | |
| Modulation | Digital |
| Direction | (add) |
| Rotational Range | (add) |
| Mechanical Limit | (add) |
| Pulse Cycle | (add) |
| Pulse Width | 500-2500 µs |
| Neutral Position | (add) |
| Dead Band | (add) |
| Refresh Rate | (add) |
| Angle Sensor | (add) |
| Control System | PWM |
| Programmable | (add) |
| Signal Voltage | (add) |
| Electrical & Environment | |
| Operating Voltage | 4.8–6 V |
| Power Source | (add) |
| Regulator Type | (add) |
| Temperature | (add) |
| Water Rating | None |
| Certification | (add) |
| Idle Current | (add) |
| Connectivity | |
| Connector | (add) |
| Wire Length | 222 mm8.74 in |
| Origin | |
| Country of Origin | USA |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Performance Analysis
| Shaft Power | 1.54 W |
| Torque Density | 1.8842 oz-in/g Stronger than 17% of the 96 Digital Low Profile servos in the database |
| Torque-to-Volume Ratio | 50.31 oz-in/in³ Denser torque than 8% of the 96 Digital Low Profile servos in the database |
| Power Density | 0.716 W/in³ More power-dense than 9% of the 188 Digital Low Profile servos in the database |
| Speed-to-Weight | 0.13378 (1/sec·g) Faster than 11% of the 96 Digital Low Profile servos in the database |
| Speed-Torque Trade-off | 14.09 Better balanced than 53% of the 94 Digital Low Profile servos in the database |
| Current-per-Torque Ratio | 0.0083 A/oz-in 1st-highest current-per-torque ratio of 27 Digital Low Profile servos |
| Torque Gain per Volt | 14.96%/V More voltage-responsive (torque) than 43% of the 75 Digital Low Profile servos in the database |
| Voltage Range Width | 1.2 V Wider voltage range than 9% of the 165 Digital Low Profile servos in the database |
