Technical Specifications
Last Updated: 2026-10-23
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |

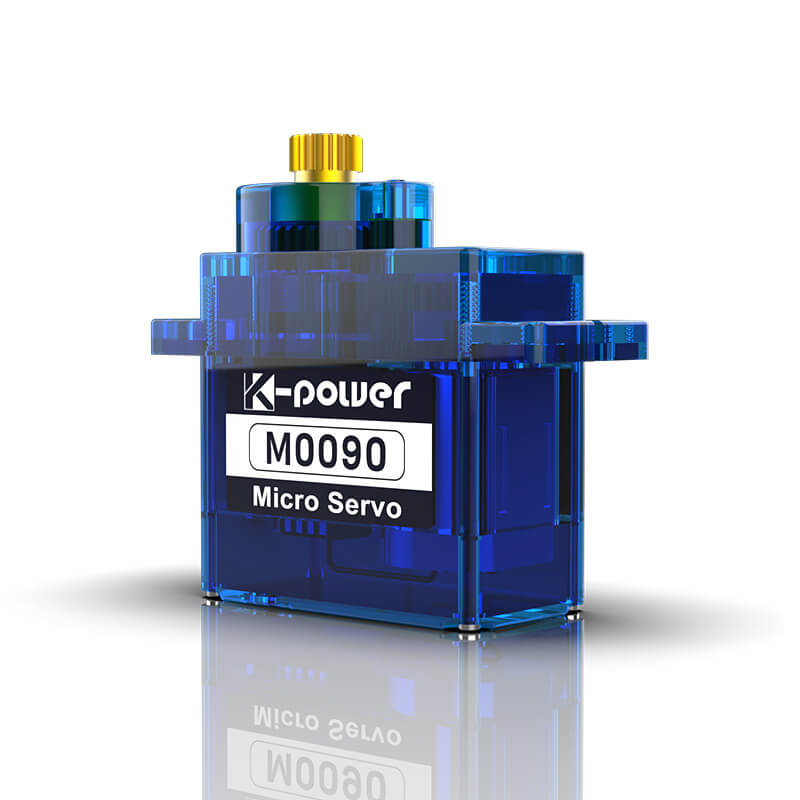

| Product Number | M0090 |
| Category | Hobby |
| Performance | |
| Torque |
6.0V41.66 oz-in3.00 kg-cm0.3 N-m |
| Speed |
6.0V0.08 sec/60°750.0 deg/s125.0 RPM |
| Stall Current | ≤0.8 A≤800 mAAverage |
| Physical | |
| Weight | 0.49 oz14.0 gBelow Average |
| Dimensions |
L 0.906 in W 0.49 in H 1.055 in L 23.0 mm W 12.4 mm H 26.8 mm |
| Case Material | Plastic |
| Drivetrain | |
| Motor Type | Brushed |
| Gears | Metal |
| Gear Spline/Teeth | 20 T |
| Rotation/Support | Dual Bearings |
| Backlash | 0.500° |
| Control & Signal | |
| Modulation | Digital |
| Rotational Range | 120° |
| Angle Sensor | Potentiometer |
| Control System | PWM |
| Electrical & Environment | |
| Operating Voltage | 4.8–8.4 V |
| Temperature | -10–50 °C14–122 °F |
| Water Rating | IP42 |
| Origin | |
| Country of Origin | China |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Class Comparison
| Weight | Below Average Lighter than 30% of 597 Digital Micro servos |
| Stall Current | Average Lower draw than 60% of 188 Digital Micro servos |
Performance Analysis
| Shaft Power | 0.96 W |
| Power Density | 2.057 W/in³ More power-dense than 54% of 563 Digital Micro servos |
| Torque Density | 2.9757 oz-in/g |
| Torque-to-Volume Ratio | 88.99 oz-in/in³ |
| Speed-to-Weight | 0.89286 (1/sec·g) |
| Speed-Torque Trade-off | 3.33 |
| Current-per-Torque Ratio | 0.0192 A/oz-in |
| Voltage Range Width | 3.6 V Wider voltage range than 86% of 496 Digital Micro servos |
| Backlash-to-Range Ratio | 0.00417 Tighter backlash than 31% of 106 Hobby servos |
