Technical Specifications
Last Updated: 2026-10-26
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |

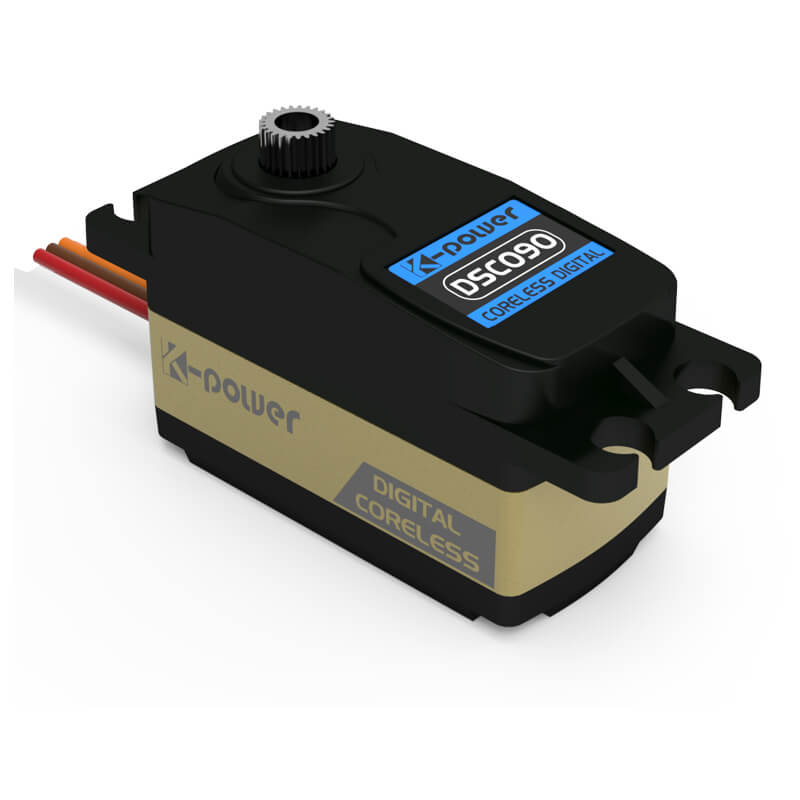

| Product Number | DSC090 |
| Category | Hobby |
| Performance | |
| Torque |
7.4V
194.42 oz-in
14.00 kg-cm
1.4 N-m
6.0V
83.34 oz-in
6.00 kg-cm
0.6 N-m
|
| Speed |
7.4V
0.07 sec/60°
857.1 deg/s
142.9 RPM
6.0V
0.11 sec/60°
545.5 deg/s
90.9 RPM
|
| Running Current |
6.0V
1.000 A
1,000 mA
4.8V
0.700 A
700 mA
Below Average
|
| Stall Current | ≤3.7 A≤3700 mAAverage |
| Physical | |
| Weight | 1.59 oz45.0 gAbove Average |
| Dimensions |
L 1.57 in W 0.819 in H 1.173 in L 39.9 mm W 20.8 mm H 29.8 mm |
| Case Material | Plastic / Aluminum |
| Drivetrain | |
| Motor Type | Coreless |
| Gears | Metal |
| Gear Spline/Teeth | 25 T |
| Rotation Mode | Positional |
| Rotation/Support | Dual Bearings |
| Backlash | 0.500° |
| Control & Signal | |
| Modulation | Digital |
| Direction | Counterclockwise |
| Rotational Range | 180° |
| Mechanical Limit | 165° |
| Pulse Width | 900-2100 µs |
| Neutral Position | 1500 µs |
| Dead Band | 3 µs |
| Angle Sensor | Potentiometer |
| Control System | PWM |
| Electrical & Environment | |
| Operating Voltage | 4.8–7.4 V |
| Temperature | -10–50 °C14–122 °F |
| Idle Current | 0.020 A20 mA |
| Connectivity | |
| Wire Length | 300 mm11.81 in |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Class Comparison
| Weight | Above Average Lighter than 76% of 304 Digital Low Profile servos |
| Running Current | Below Average Lower draw than 15% of 27 Digital Low Profile servos at 4.8V |
| Stall Current | Average Lower draw than 44% of 81 Digital Low Profile servos |
Performance Analysis
| Shaft Power | 1.40–5.14 W |
| Power Density | 3.405 W/in³ More power-dense than 50% of 273 Digital Low Profile servos |
| Torque Density | 1.8520 oz-in/g |
| Torque-to-Volume Ratio | 55.26 oz-in/in³ |
| Speed-to-Weight | 0.20202 (1/sec·g) |
| Speed-Torque Trade-off | 9.17 |
| Current-per-Torque Ratio | 0.0444 A/oz-in |
| Idle-to-Running Current Ratio | 0.029 Lower idle draw than 73% of 333 Hobby servos |
| No-Load vs Stall Current Spread | 5.29 2nd-highest no-load vs stall current spread of 20 Low Profile servos |
| Voltage Range Width | 2.6 V Wider voltage range than 56% of 276 Digital Low Profile servos |
| Backlash-to-Range Ratio | 0.00278 Tighter backlash than 67% of 106 Hobby servos |
| Dead-Band-to-Pulse-Width Ratio | 0.0025 Finer dead band than 10% of 79 Digital Low Profile servos |
