Technical Specifications
Last Updated: 2026-10-10
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |

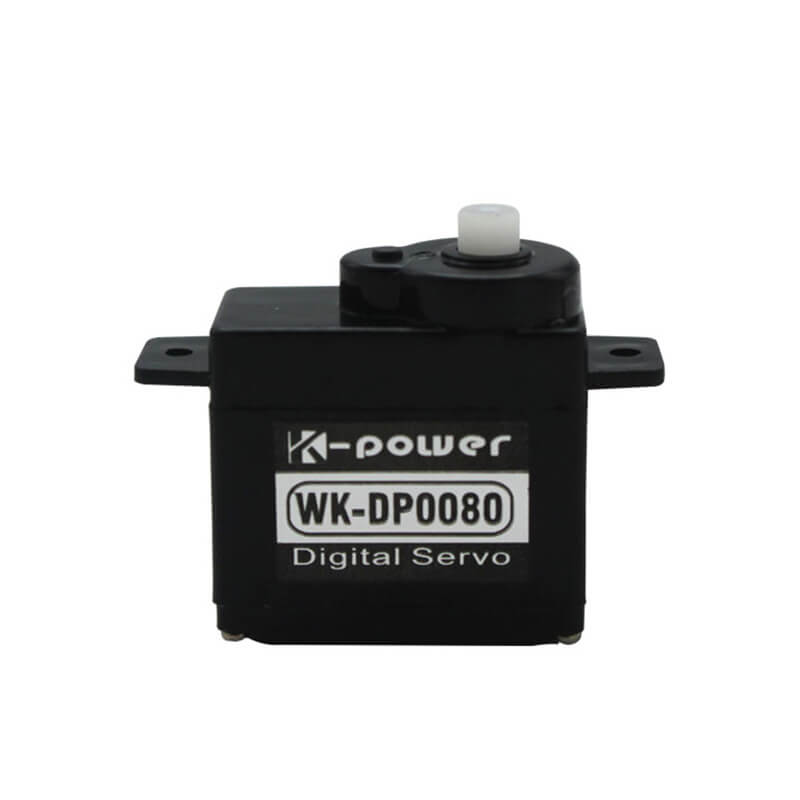

| Product Number | DP0080 |
| Category | Hobby |
| Performance | |
| Torque |
6.0V83.34 oz-in6.00 kg-cm0.6 N-m |
| Speed |
6.0V0.10 sec/60°600.0 deg/s100.0 RPM |
| Physical | |
| Weight | 0.28 oz8.0 gAbove Average |
| Dimensions |
L 0.91 in W 0.47 in H 0.81 in L 23.1 mm W 11.9 mm H 20.6 mm |
| Drivetrain | |
| Motor Type | Coreless |
| Gears | Plastic |
| Rotation/Support | Bushing |
| Control & Signal | |
| Modulation | Digital |
| Rotational Range | 120° |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Class Comparison
| Weight | Above Average Lighter than 68% of 620 Digital Micro servos |
Performance Analysis
| Shaft Power | 1.54 W |
| Power Density | 4.448 W/in³ More power-dense than 75% of 590 Digital Micro servos |
| Torque Density | 10.4175 oz-in/g |
| Torque-to-Volume Ratio | 240.56 oz-in/in³ |
| Speed-to-Weight | 1.25000 (1/sec·g) |
| Speed-Torque Trade-off | 8.33 |
