Technical Specifications
Last Updated: 2026-11-04
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |
| Product Number | DMM300 |
| Category | Hobby |
| Performance | |
| Torque |
6.0V
486.06 oz-in
35.00 kg-cm
3.4 N-m
4.8V
388.85 oz-in
28.00 kg-cm
2.7 N-m
|
| Speed |
6.0V
0.18 sec/60°
333.3 deg/s
55.6 RPM
4.8V
0.20 sec/60°
300.0 deg/s
50.0 RPM
|
| Physical | |
| Weight | 6.63 oz188.0 gAbove Average |
| Dimensions |
L 2.36 in W 1.18 in H 2.40 in L 59.9 mm W 30.0 mm H 61.0 mm |
| Case Material | Aluminum / Plastic |
| Drivetrain | |
| Motor Type | Brushed |
| Gears | Metal |
| Gear Spline/Teeth | 17 T |
| Rotation Mode | Positional |
| Rotation/Support | Dual Bearings |
| Control & Signal | |
| Modulation | Digital |
| Direction | Counterclockwise |
| Rotational Range | 120° |
| Pulse Width | 900-2100 µs |
| Control System | PWM |
| Electrical & Environment | |
| Certification | FCC | CE | ROHS |
| Origin | |
| Country of Origin | China |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Class Comparison
| Weight | Above Average Lighter than 65% of 168 Digital Giant servos |
Performance Analysis
| Shaft Power | 3.59–4.99 W |
| Power Density | 0.747 W/in³ More power-dense than 17% of 136 Digital Giant servos |
| Torque Density | 2.0683 oz-in/g |
| Torque-to-Volume Ratio | 58.18 oz-in/in³ |
| Speed-to-Weight | 0.02660 (1/sec·g) |
| Speed-Torque Trade-off | 77.77 |
Similar Active Servos

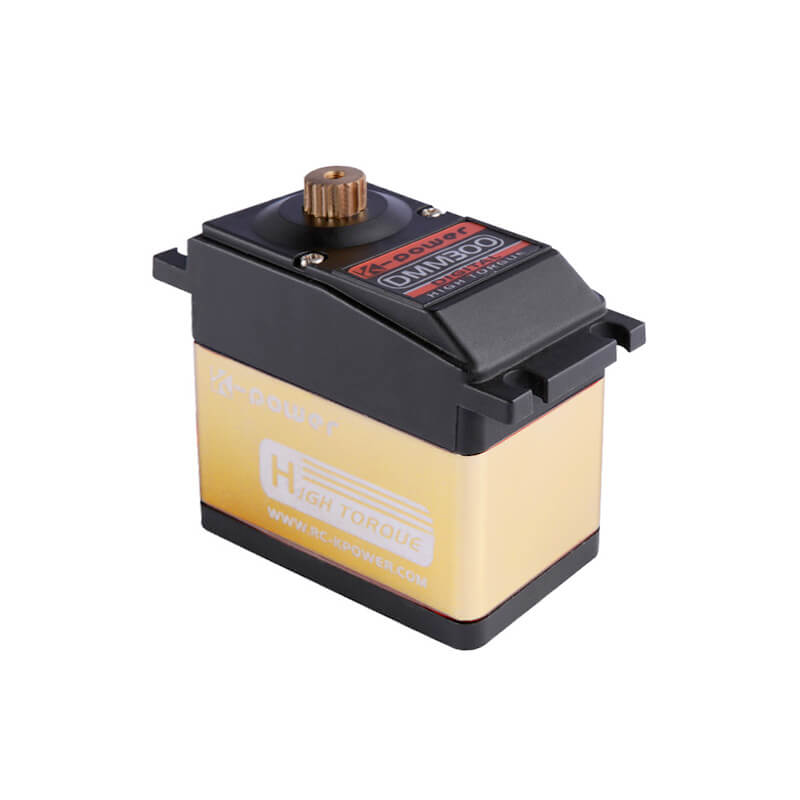

Reviews of Kpower DMM300
