Technical Specifications
Last Updated: 2026-10-26
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |

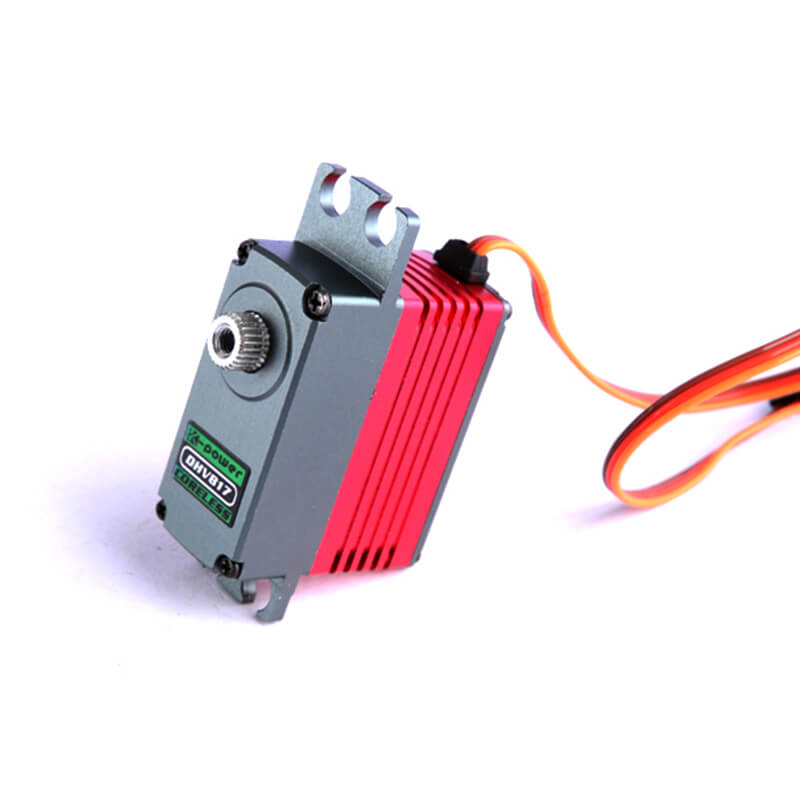

| Product Number | DHV817 |
| Category | Hobby |
| Performance | |
| Torque |
7.4V41.66 oz-in3.00 kg-cm0.3 N-m |
| Speed |
7.4V0.05 sec/60°1,200.0 deg/s200.0 RPM |
| Stall Current | ≤2 A≤2000 mABelow Average |
| Physical | |
| Weight | 1.13 oz32.0 gBelow Average |
| Dimensions |
L 1.34 in W 0.59 in H 1.10 in L 34.0 mm W 15.0 mm H 27.9 mm |
| Case Material | Aluminum |
| Drivetrain | |
| Motor Type | Coreless |
| Gears | Metal |
| Gear Spline/Teeth | 25 T |
| Rotation/Support | Dual Bearings |
| Control & Signal | |
| Rotational Range | 120° |
| Angle Sensor | Potentiometer |
| Electrical & Environment | |
| Operating Voltage | 4.8–8.4 V |
| Temperature | -10–50 °C14–122 °F |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Class Comparison
| Weight | Below Average Lighter than 17% of 717 Mini servos |
| Stall Current | Below Average Lower draw than 33% of 126 Mini servos |
Performance Analysis
| Shaft Power | 1.54 W |
| Power Density | 1.772 W/in³ More power-dense than 52% of 62 Kpower servos |
| Torque Density | 1.3019 oz-in/g |
| Torque-to-Volume Ratio | 47.90 oz-in/in³ |
| Speed-to-Weight | 0.62500 (1/sec·g) |
| Speed-Torque Trade-off | 2.08 |
| Current-per-Torque Ratio | 0.0480 A/oz-in |
| Voltage Range Width | 3.6 V Wider voltage range than 81% of 49 Kpower servos |
