Technical Specifications
Last Updated: 2026-10-10
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |

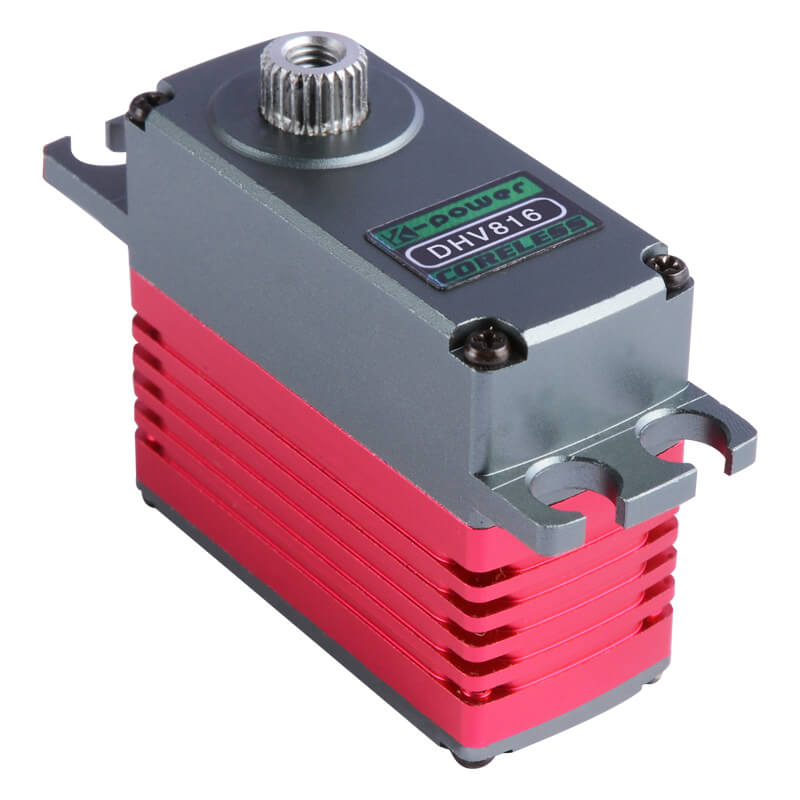

| Product Number | DHV816 |
| Category | Hobby |
| Performance | |
| Torque |
7.4V102.79 oz-in7.40 kg-cm0.7 N-m |
| Speed |
7.4V0.10 sec/60°600.0 deg/s100.0 RPM |
| Stall Current | ≤2 A≤2000 mAAverage |
| Physical | |
| Weight | 1.06 oz30.0 gBelow Average |
| Dimensions |
L 1.34 in W 0.59 in H 1.10 in L 34.0 mm W 15.0 mm H 27.9 mm |
| Case Material | Aluminum |
| Drivetrain | |
| Motor Type | Coreless |
| Gears | Titanium |
| Gear Spline/Teeth | 25 T |
| Rotation/Support | Dual Bearings |
| Control & Signal | |
| Modulation | Digital |
| Rotational Range | 120° |
| Angle Sensor | Potentiometer |
| Control System | PWM | UART-TTL | RS-485 |
| Electrical & Environment | |
| Operating Voltage | 4.8–8.4 V |
| Temperature | -10–50 °C14–122 °F |
| Water Rating | IP42 |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Class Comparison
| Weight | Below Average Lighter than 25% of 466 Digital Mini servos |
| Stall Current | Average Lower draw than 45% of 76 Digital Mini servos |
Performance Analysis
| Shaft Power | 1.90 W |
| Power Density | 2.185 W/in³ More power-dense than 64% of 440 Digital Mini servos |
| Torque Density | 3.4263 oz-in/g |
| Torque-to-Volume Ratio | 118.20 oz-in/in³ |
| Speed-to-Weight | 0.33333 (1/sec·g) |
| Speed-Torque Trade-off | 10.28 |
| Current-per-Torque Ratio | 0.0195 A/oz-in |
| Voltage Range Width | 3.6 V Wider voltage range than 83% of 351 Digital Mini servos |
