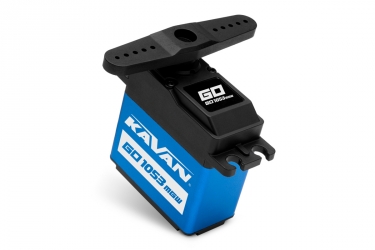

Kavan GO-1053MGW - High Torque Waterproof Programmable Digital Standard Servo

Specifications

Source: Most data comes from the manufacturer but some data is sourced from our loyal community.

Last Updated:	2025-06-26
Modulation:	Digital
Torque:	4.8V: 180.57 oz-in (13.00 kg-cm) 6.0V: 208.35 oz-in (15.00 kg-cm) 7.4V: 250.02 oz-in (18.00 kg-cm) 8.4V: 277.80 oz-in (20.00 kg-cm)
Speed:	4.8V: 0.23 sec/60° 6.0V: 0.21 sec/60° 7.4V: 0.20 sec/60° 8.4V: 0.17 sec/60°
Weight:	2.22 oz (63.0 g)
Dimensions:	Length:1.57 in (39.9 mm) Width:0.79 in (20.1 mm) Height:1.67 in (42.4 mm)
Motor Type:	(add)
Gear Type:	Titanium
Rotation/Support:	Dual Bearings
Rotational Range:	180°
Pulse Cycle:	(add)
Pulse Width:	500-2500 µs
Connector Type:	(add)
