Technical Specifications
Last Updated: 2026-10-24
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |
| Product Number | KAV20.1013MG |
| Category | Hobby |
| Performance | |
| Torque |
6.0V
52.78 oz-in
3.80 kg-cm
0.4 N-m
4.8V
41.67 oz-in
3.00 kg-cm
0.3 N-m
Above Average
|
| Speed |
6.0V
0.12 sec/60°
500.0 deg/s
83.3 RPM
4.8V
0.15 sec/60°
400.0 deg/s
66.7 RPM
Below Average
|
| Physical | |
| Weight | 0.53 oz15.0 gBelow Average |
| Dimensions |
L 0.90 in W 0.47 in H 1.16 in L 22.9 mm W 11.9 mm H 29.5 mm |
| Case Material | Aluminum / Plastic |
| Drivetrain | |
| Gears | Titanium |
| Gear Spline/Teeth | 25 T |
| Rotation Mode | Positional |
| Rotation/Support | Dual Bearings |
| Control & Signal | |
| Modulation | Digital |
| Rotational Range | 180° |
| Pulse Width | 900-2100 µs |
| Neutral Position | 1500 µs |
| Programmable | Yes |
| Electrical & Environment | |
| Operating Voltage | 4.8–6 V |
| Temperature | 0–55 °C32–131 °F |
| Connectivity | |
| Connector | JR (Universal) estimate |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Class Comparison
| Torque | Above Average Stronger than 75% of 349 Digital Micro servos at 4.8V |
| Speed | Below Average Faster than 16% of 347 Digital Micro servos at 4.8V |
| Weight | Below Average Lighter than 28% of 597 Digital Micro servos |
Performance Analysis
| Shaft Power | 0.51–0.81 W |
| Power Density | 1.658 W/in³ More power-dense than 46% of 563 Digital Micro servos |
| Torque Density | 2.7780 oz-in/g Stronger than 64% of 349 Digital Micro servos |
| Torque-to-Volume Ratio | 84.92 oz-in/in³ Denser torque than 61% of 345 Digital Micro servos |
| Speed-to-Weight | 0.44444 (1/sec·g) Faster than 13% of 347 Digital Micro servos |
| Speed-Torque Trade-off | 6.25 Better balanced than 79% of 345 Digital Micro servos |
| Torque Gain per Volt | 22.22%/V More voltage-responsive (torque) than 80% of 290 Digital Micro servos |
| Speed Gain per Volt | 20.83%/V More voltage-responsive (speed) than 66% of 295 Digital Micro servos |
| Voltage Range Width | 1.2 V Wider voltage range than 13% of 496 Digital Micro servos |
Similar Active Servos

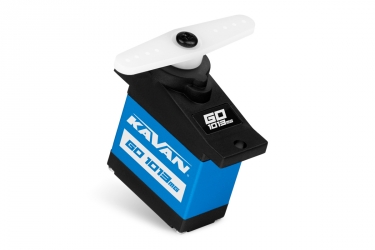

Reviews of Kavan GO-1013MG
