Technical Specifications
Last Updated: 2026-10-26
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |

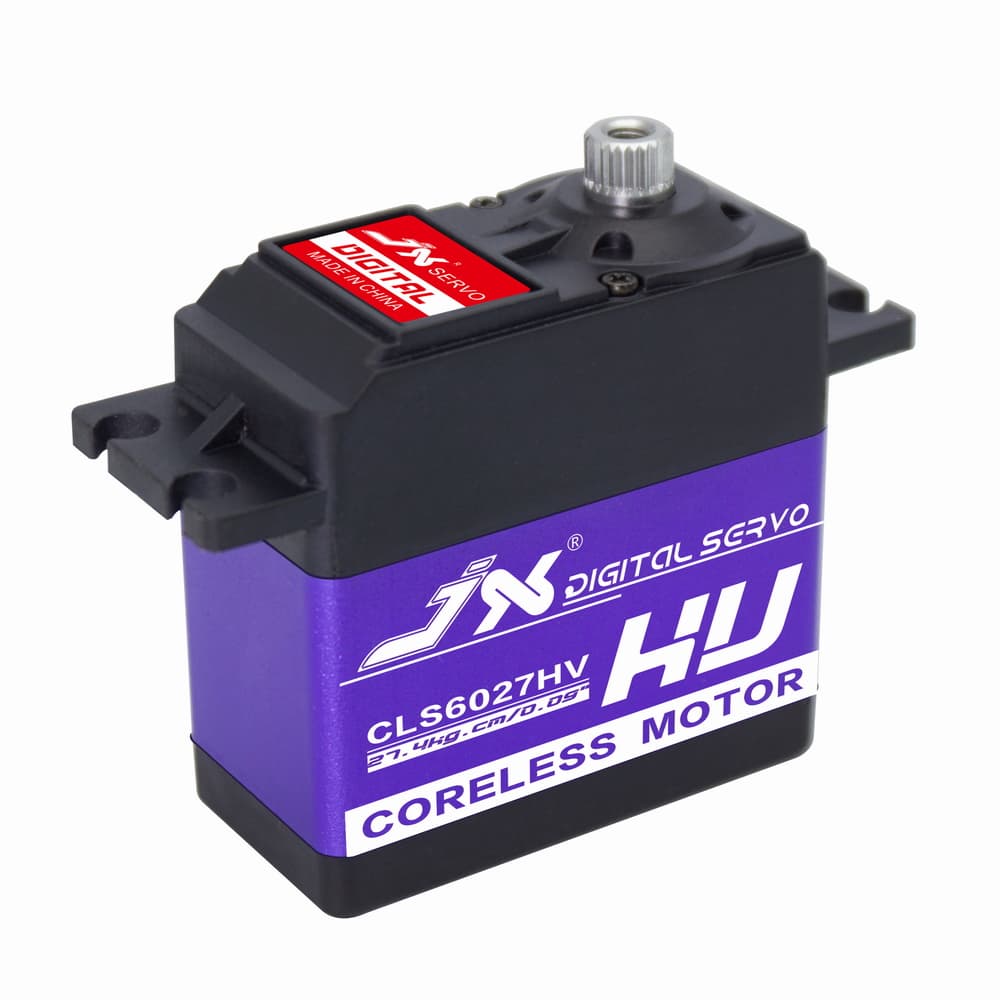

| Product Number | CLS6027HV |
| Category | Hobby |
| Performance | |
| Torque |
7.4V
380.51 oz-in
27.40 kg-cm
2.7 N-m
6.0V
313.86 oz-in
22.60 kg-cm
2.2 N-m
Above Average
4.8V
313.86 oz-in
22.60 kg-cm
2.2 N-m
|
| Speed |
7.4V
0.09 sec/60°
666.7 deg/s
111.1 RPM
6.0V
0.11 sec/60°
545.5 deg/s
90.9 RPM
Above Average
|
| Physical | |
| Weight | 2.12 oz60.0 gAverage |
| Dimensions |
L 1.59 in W 0.81 in H 1.57 in L 40.4 mm W 20.6 mm H 39.9 mm |
| Case Material | Metal |
| Drivetrain | |
| Motor Type | Coreless |
| Gears | Aluminum |
| Gear Spline/Teeth | 25 T |
| Rotation/Support | Dual Bearings |
| Control & Signal | |
| Modulation | Digital |
| Rotational Range | 180° |
| Pulse Cycle | 3.03 ms |
| Neutral Position | 1520 µs |
| Dead Band | 1 µs |
| Refresh Rate | 330 Hz |
| Electrical & Environment | |
| Operating Voltage | 6–7.4 V |
| Connectivity | |
| Connector | JR (Universal) |
| Wire Length | 265 mm10.43 in |
| Origin | |
| Country of Origin | China |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Class Comparison
| Torque | Above Average Stronger than 70% of 1055 Digital Standard servos at 6.0V |
| Speed | Above Average Faster than 72% of 1038 Digital Standard servos at 6.0V |
| Weight | Average Lighter than 61% of 1872 Digital Standard servos |
Performance Analysis
| Shaft Power | 5.28–7.82 W |
| Power Density | 3.866 W/in³ More power-dense than 70% of 1762 Digital Standard servos |
| Torque Density | 5.2310 oz-in/g Stronger than 81% of 1048 Digital Standard servos |
| Torque-to-Volume Ratio | 155.22 oz-in/in³ Denser torque than 67% of 1053 Digital Standard servos |
| Speed-to-Weight | 0.15152 (1/sec·g) Faster than 74% of 1031 Digital Standard servos |
| Speed-Torque Trade-off | 34.52 Better balanced than 57% of 1029 Digital Standard servos |
| Torque Gain per Volt | 15.17%/V More voltage-responsive (torque) than 46% of 868 Digital Standard servos |
| Speed Gain per Volt | 15.87%/V More voltage-responsive (speed) than 51% of 868 Digital Standard servos |
| Voltage Range Width | 1.4 V Wider voltage range than 28% of 1552 Digital Standard servos |
