Technical Specifications
Last Updated: 2026-10-10
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |

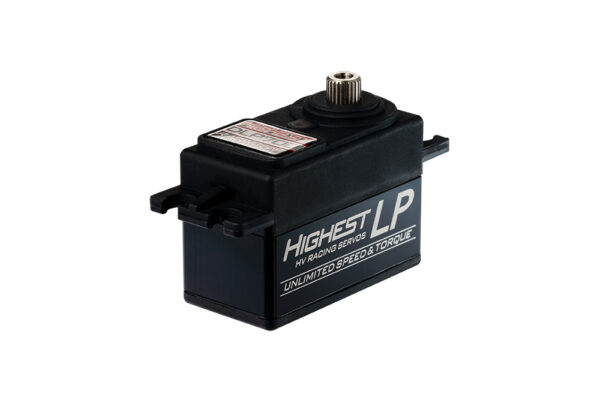

| Product Number | DLP700 |
| Category | Hobby |
| Performance | |
| Torque |
7.4V
195.81 oz-in
14.10 kg-cm
1.4 N-m
6.0V
161.09 oz-in
11.60 kg-cm
1.1 N-m
|
| Speed |
7.4V
0.08 sec/60°
750.0 deg/s
125.0 RPM
6.0V
0.10 sec/60°
600.0 deg/s
100.0 RPM
|
| Physical | |
| Weight | 1.84 oz52.1 gAbove Average |
| Dimensions |
L 1.56 in W 0.79 in H 1.19 in L 39.6 mm W 20.1 mm H 30.2 mm |
| Drivetrain | |
| Motor Type | Coreless |
| Gears | Metal |
| Rotation/Support | Dual Bearings |
| Control & Signal | |
| Modulation | Digital |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Class Comparison
| Weight | Above Average Lighter than 82% of 1902 Digital Standard servos |
Performance Analysis
| Shaft Power | 2.98–4.53 W |
| Power Density | 3.086 W/in³ More power-dense than 60% of 1759 Digital Standard servos |
| Torque Density | 3.0919 oz-in/g |
| Torque-to-Volume Ratio | 109.84 oz-in/in³ |
| Speed-to-Weight | 0.19194 (1/sec·g) |
| Speed-Torque Trade-off | 16.11 |
Similar Active Servos
KO Propo RSx4S-one10X
Weight: 50.5 grams
Dimensions: 1.594" x 0.827" x 1.024"
Size Class: Low Profile
