Technical Specifications
Last Updated: 2026-07-10
|
Identity
Performance
Physical
Drivetrain
Control & Signal
Electrical & Environment
Connectivity
Origin
Preferences are saved automatically.
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |
| Product Number | (add) |
| Category | Hobby |
| Performance | |
| Torque |
12.0V388.92 oz-in28.01 kg-cm2.7 N-m |
| Speed |
12.0V0.06 sec/60°1,000.0 deg/s166.7 RPM |
| Running Current | (add) |
| Stall Current | (add) |
| Physical | |
| Weight | 2.82 oz80.0 g |
| Dimensions |
L 1.59 in W 0.79 in H 1.52 in L 40.4 mm W 20.1 mm H 38.6 mm |
| Case Material | (add) |
| Drivetrain | |
| Motor Type | Brushless |
| Motor Drive | (add) |
| Gears | Steel |
| Gear Spline/Teeth | (add) |
| Shaft Size | (add) |
| Rotation Mode | (add) |
| Rotation/Support | Dual Bearings |
| Backlash | (add) |
| Control & Signal | |
| Modulation | Digital |
| Direction | (add) |
| Rotational Range | 90° |
| Mechanical Limit | (add) |
| Pulse Cycle | (add) |
| Pulse Width | 450-1050 µs |
| Neutral Position | 760 µs |
| Dead Band | (add) |
| Refresh Rate | 400 Hz |
| Angle Sensor | (add) |
| Control System | (add) |
| Programmable | (add) |
| Signal Voltage | (add) |
| Electrical & Environment | |
| Operating Voltage | 12–12 V |
| Power Source | (add) |
| Regulator Type | (add) |
| Temperature | (add) |
| Water Rating | (add) |
| Certification | (add) |
| Idle Current | (add) |
| Connectivity | |
| Connector | (add) |
| Wire Length | (add) |
| Origin | |
| Country of Origin | China |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Performance Analysis
| Shaft Power | 11.99 W |
| Torque Density | 4.8615 oz-in/g Stronger than 76% of the 831 Digital Standard servos in the database |
| Torque-to-Volume Ratio | 203.70 oz-in/in³ Denser torque than 81% of the 842 Digital Standard servos in the database |
| Power Density | 6.277 W/in³ More power-dense than 86% of the 1643 Digital Standard servos in the database |
| Speed-to-Weight | 0.20833 (1/sec·g) Faster than 83% of the 820 Digital Standard servos in the database |
| Speed-Torque Trade-off | 23.34 Better balanced than 45% of the 825 Digital Standard servos in the database |
| Voltage Range Width | 0.0 V Wider voltage range than 0% of the 1268 Digital Standard servos in the database |
Quick Actions
Similar Active Servos
NitroPro FK-N500FST
Weight: 79 grams
Dimensions: 1.5748" x 0.787402" x 1.47638"
Size Class: Standard

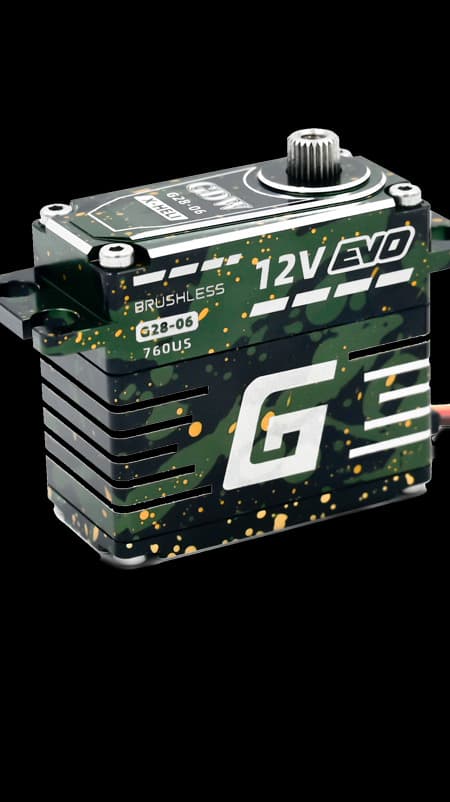

Reviews of GDW G28
