Technical Specifications
Last Updated: 2026-10-26
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |

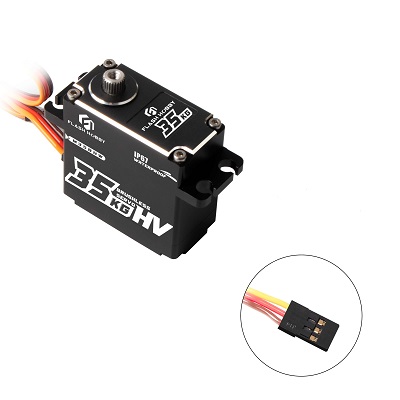

| Product Number | M35BHW |
| Category | Hobby |
| Performance | |
| Torque |
8.4V
486.05 oz-in
35.00 kg-cm
3.4 N-m
6.0V
416.61 oz-in
30.00 kg-cm
2.9 N-m
Above Average
|
| Speed |
8.4V
0.07 sec/60°
857.1 deg/s
142.9 RPM
6.0V
0.09 sec/60°
666.7 deg/s
111.1 RPM
Above Average
|
| Running Current |
8.4V
0.350 A
350 mA
6.0V
0.300 A
300 mA
Below Average
|
| Stall Current | 4–5.5 A4000–5500 mABelow Average |
| Physical | |
| Weight | 2.65 oz75.0 gBelow Average |
| Dimensions |
L 1.57 in W 0.79 in H 1.59 in L 39.9 mm W 20.1 mm H 40.4 mm |
| Case Material | Aluminum |
| Drivetrain | |
| Motor Type | Brushless |
| Motor Drive | MOS |
| Gears | Steel |
| Gear Spline/Teeth | 25 T |
| Rotation Mode | Positional |
| Rotation/Support | Dual Bearings |
| Control & Signal | |
| Modulation | Digital |
| Rotational Range | 180° |
| Mechanical Limit | 360° |
| Pulse Width | 500-2500 µs |
| Neutral Position | 1500 µs |
| Dead Band | 1 µs |
| Angle Sensor | Potentiometer |
| Control System | PWM |
| Electrical & Environment | |
| Operating Voltage | 6–8.4 V |
| Temperature | -20–60 °C-4–140 °F |
| Water Rating | IP67 |
| Connectivity | |
| Connector | JR (Universal) |
| Wire Length | 300 mm11.81 in |
| Origin | |
| Country of Origin | China |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Class Comparison
| Torque | Above Average Stronger than 87% of 1060 Digital Standard servos at 6.0V |
| Speed | Above Average Faster than 82% of 1045 Digital Standard servos at 6.0V |
| Weight | Below Average Lighter than 21% of 1880 Digital Standard servos |
| Running Current | Below Average Lower draw than 34% of 226 Digital Standard servos at 6.0V |
| Stall Current | Below Average Lower draw than 18% of 570 Digital Standard servos |
Performance Analysis
| Shaft Power | 8.56–12.84 W |
| Power Density | 6.510 W/in³ More power-dense than 88% of 1768 Digital Standard servos |
| Torque Density | 5.5548 oz-in/g Stronger than 84% of 1053 Digital Standard servos |
| Torque-to-Volume Ratio | 211.25 oz-in/in³ Denser torque than 86% of 1058 Digital Standard servos |
| Speed-to-Weight | 0.14815 (1/sec·g) Faster than 72% of 1038 Digital Standard servos |
| Speed-Torque Trade-off | 37.49 Better balanced than 60% of 1034 Digital Standard servos |
| Current-per-Torque Ratio | 0.0132 A/oz-in More efficient than 58% of 331 Digital Standard servos |
| No-Load vs Stall Current Spread | 18.33 Narrower current spread than 49% of 179 Digital Standard servos |
| Torque Gain per Volt | 6.94%/V More voltage-responsive (torque) than 7% of 873 Digital Standard servos |
| Speed Gain per Volt | 11.90%/V More voltage-responsive (speed) than 27% of 874 Digital Standard servos |
| Voltage Range Width | 2.4 V Wider voltage range than 49% of 1560 Digital Standard servos |
| Dead-Band-to-Pulse-Width Ratio | 0.0005 Finer dead band than 95% of 504 Digital Standard servos |
