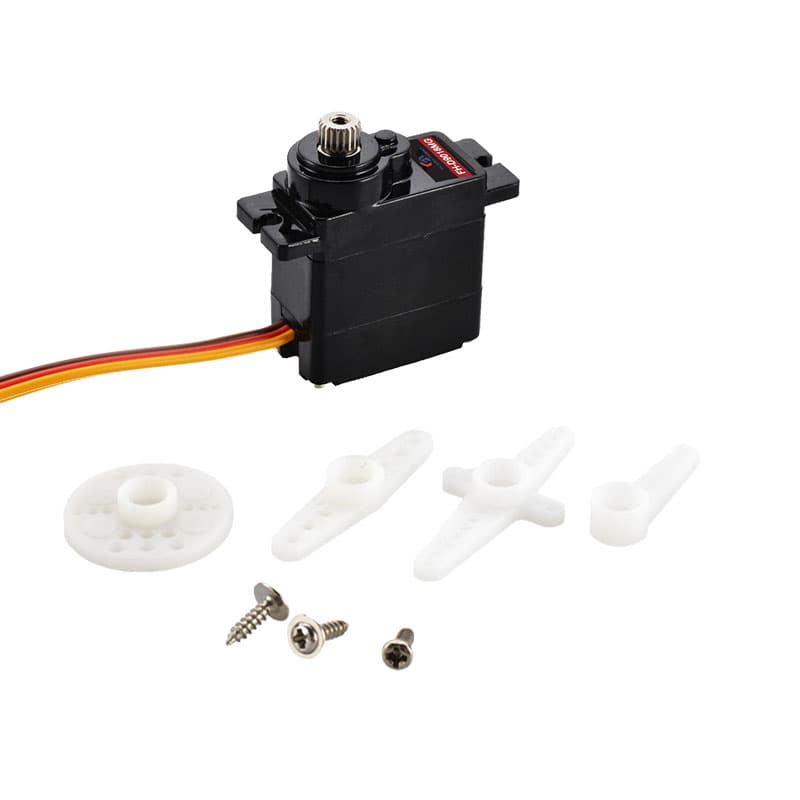

Flash Hobby FH-9025MG

Search Amazon Search eBay

Compatible Hardware

Amazon eBay

*Based on known specs.

Technical Specifications

Last Updated: 2026-10-10

Identity
Brand
Product Number	FH-9025MG
Category	Hobby
Performance
Torque	6.0V 34.72 oz-in 4.8V 32.64 oz-in Bottom 10%
Speed	8.4V 0.09 sec/60° 6.0V 0.11 sec/60°
Physical
Weight	0.88 ozTop 10%
Dimensions	L 1.42 in W 0.60 in H 1.30 in
Drivetrain
Motor Type	Coreless
Gears	Metal
Gear Spline/Teeth	25 T
Control & Signal
Modulation	Digital
Rotational Range	180°
Mechanical Limit	120°
Pulse Width	800-2000 µs
Neutral Position	1520 µs
Angle Sensor	Potentiometer
Control System	PWM
Electrical & Environment
Operating Voltage	4.8–6 V
Temperature	-10–50 °C
Connectivity
Connector	JR (Universal) estimate
Origin
Country of Origin	China

Submit Missing Data Report an Error

Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.

Compatible Hardware

Amazon eBay

*Based on known specs.

Class Comparison

Torque	Bottom 10% Stronger than 0% of 1043 Digital Standard servos at 4.8V
Weight	Top 10% Lighter than 99% of 1902 Digital Standard servos

Performance Analysis

Shaft Power	0.58 W
Power Density	0.527 W/in³ More power-dense than 4% of 1759 Digital Standard servos
Torque Density	1.3056 oz-in/g Stronger than 7% of 1036 Digital Standard servos
Torque-to-Volume Ratio	29.47 oz-in/in³ Denser torque than 3% of 1042 Digital Standard servos
Speed-to-Weight	0.36364 (1/sec·g)
Speed-Torque Trade-off	3.59
Torque Gain per Volt	5.31%/V More voltage-responsive (torque) than 4% of 850 Digital Standard servos
Voltage Range Width	1.2 V Wider voltage range than 8% of 1539 Digital Standard servos
