Technical Specifications
Last Updated: 2026-07-28
|
Identity
Performance
Physical
Drivetrain
Control & Signal
Electrical & Environment
Connectivity
Origin
Preferences are saved automatically.
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |
| Product Number | (add) |
| Category | Hobby |
| Performance | |
| Torque |
6.0V
62.50 oz-in
4.50 kg-cm
0.4 N-m
4.8V
55.55 oz-in
4.00 kg-cm
0.4 N-m
|
| Speed |
6.0V
0.07 sec/60°
857.1 deg/s
142.9 RPM
4.8V
0.08 sec/60°
750.0 deg/s
125.0 RPM
|
| Running Current | (add) |
| Stall Current | (add) |
| Physical | |
| Weight | 0.88 oz25.0 g |
| Dimensions |
L 1.42 in W 0.60 in H 1.13 in L 36.1 mm W 15.2 mm H 28.7 mm |
| Case Material | (add) |
| Drivetrain | |
| Motor Type | Coreless |
| Motor Drive | FET |
| Gears | Plastic |
| Gear Spline/Teeth | 25 T |
| Shaft Size | (add) |
| Rotation Mode | (add) |
| Rotation/Support | Dual Bearings |
| Backlash | (add) |
| Control & Signal | |
| Modulation | Digital |
| Direction | (add) |
| Rotational Range | 120° |
| Mechanical Limit | (add) |
| Pulse Cycle | (add) |
| Pulse Width | 800-2200 µs |
| Neutral Position | 1500 µs |
| Dead Band | (add) |
| Refresh Rate | (add) |
| Angle Sensor | Potentiometer |
| Control System | PWM |
| Programmable | (add) |
| Signal Voltage | (add) |
| Electrical & Environment | |
| Operating Voltage | 4.8–7.2 V |
| Power Source | (add) |
| Regulator Type | (add) |
| Temperature | -20–60 °C-4–140 °F |
| Water Rating | (add) |
| Certification | (add) |
| Idle Current | (add) |
| Connectivity | |
| Connector | JR (Universal) estimate |
| Wire Length | (add) |
| Origin | |
| Country of Origin | China |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Performance Analysis
| Shaft Power | 1.28–1.65 W |
| Torque Density | 2.2220 oz-in/g Stronger than 39% of the 219 Digital Mini servos in the database |
| Torque-to-Volume Ratio | 57.70 oz-in/in³ Denser torque than 29% of the 224 Digital Mini servos in the database |
| Power Density | 1.715 W/in³ More power-dense than 58% of the 425 Digital Mini servos in the database |
| Speed-to-Weight | 0.50000 (1/sec·g) Faster than 80% of the 220 Digital Mini servos in the database |
| Speed-Torque Trade-off | 4.44 Better balanced than 25% of the 223 Digital Mini servos in the database |
| Voltage Range Width | 2.4 V Wider voltage range than 57% of the 288 Digital Mini servos in the database |
Quick Actions
Similar Active Servos

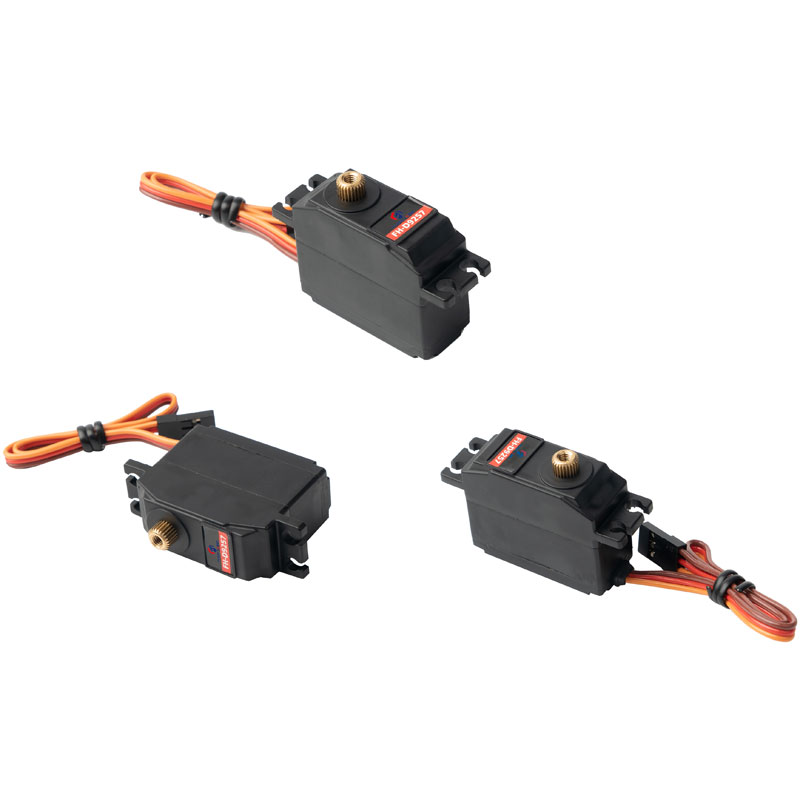

Reviews of Flash Hobby FH-D9257MG
