Technical Specifications
Last Updated: 2026-07-10
|
Identity
Performance
Physical
Drivetrain
Control & Signal
Electrical & Environment
Connectivity
Origin
Preferences are saved automatically.
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |
| Product Number | (add) |
| Category | Robotics |
| Performance | |
| Torque |
7.4V
420.00 oz-in
30.24 kg-cm
3.0 N-m
6.0V
359.00 oz-in
25.85 kg-cm
2.5 N-m
|
| Speed |
7.4V
0.16 sec/60°
375.0 deg/s
62.5 RPM
6.0V
0.18 sec/60°
333.3 deg/s
55.6 RPM
|
| Running Current | (add) |
| Stall Current | (add) |
| Rated Output Power | (add) |
| Radial Load | (add) |
| Physical | |
| Weight | 2.57 oz73.0 g |
| Shape | Boxed |
| Dimensions |
L 1.69 in W 1.25 in H 1.28 in L 42.9 mm W 31.8 mm H 32.5 mm |
| Case Material | (add) |
| Drivetrain | |
| Motor Type | Coreless |
| Motor Drive | (add) |
| Gears | Titanium |
| Gear Ratio | (add) |
| Gear Spline/Teeth | (add) |
| Shaft Size | (add) |
| Rotation Mode | (add) |
| Rotation/Support | Dual Bearings |
| Backlash | (add) |
| Control & Signal | |
| Modulation | Digital |
| Direction | (add) |
| Rotational Range | 280° |
| Mechanical Limit | (add) |
| Pulse Cycle | (add) |
| Pulse Width | 1500-2000 µs |
| Neutral Position | (add) |
| Dead Band | (add) |
| Refresh Rate | (add) |
| Angle Sensor | (add) |
| Control System | (add) |
| Programmable | (add) |
| Resolution | (add) |
| MCU | (add) |
| Operating Modes | (add) |
| Signal Voltage | (add) |
| Electrical & Environment | |
| Operating Voltage | (add) |
| Power Source | (add) |
| Regulator Type | (add) |
| Temperature | (add) |
| Water Rating | (add) |
| Certification | (add) |
| Idle Current | (add) |
| Connectivity | |
| Connector | (add) |
| Wire Length | (add) |
| Baud Rate | (add) |
| Origin | |
| Country of Origin | (add) |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Performance Analysis
| Shaft Power | 3.69–4.85 W |
| Torque Density | 4.9178 oz-in/g |
| Torque-to-Volume Ratio | 132.77 oz-in/in³ |
| Power Density | 1.795 W/in³ More power-dense than 68% of the 88 Digital Large servos in the database |
| Speed-to-Weight | 0.07610 (1/sec·g) |
| Speed-Torque Trade-off | 64.63 |
Quick Actions
Similar Active Servos

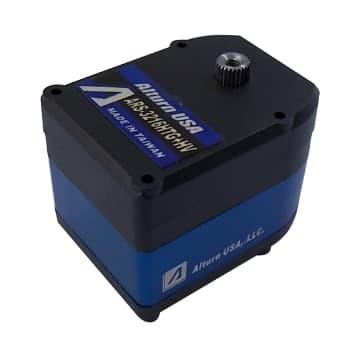

Reviews of Alturn ARS-3216HTG+HV
