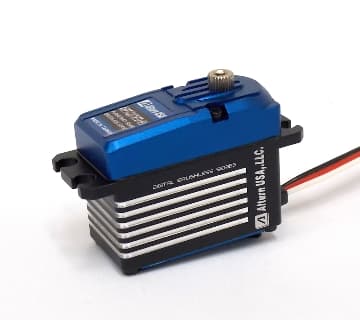

Alturn AHPT-2207HTG+HV - Planetary Full HV Servo

Specifications

Source: Most data comes from the manufacturer but some data is sourced from our loyal community.

Last Updated:	2025-07-07
Modulation:	Digital
Torque:	6.0V: 204.00 oz-in (14.69 kg-cm) 7.4V: 246.00 oz-in (17.71 kg-cm) 8.4V: 293.00 oz-in (21.10 kg-cm)
Speed:	6.0V: 0.11 sec/60° 7.4V: 0.09 sec/60° 8.4V: 0.07 sec/60°
Weight:	2.40 oz (68.0 g)
Dimensions:	Length:1.61 in (40.9 mm) Width:0.82 in (20.8 mm) Height:1.11 in (28.2 mm)
Motor Type:	Brushless
Gear Type:	Steel
Rotation/Support:	Dual Bearings
Rotational Range:	90°
Pulse Cycle:	(add)
Pulse Width:	1500-2000 µs
Connector Type:	(add)
