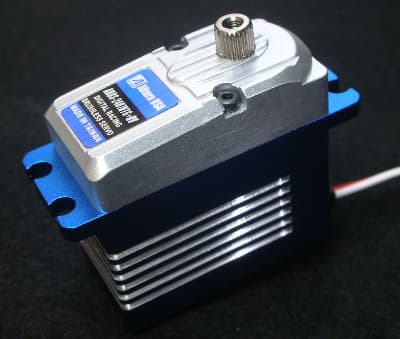

Alturn AHBS-3713HTG+HV - Full Size High Voltage BLDC Servo

Specifications

Source: Most data comes from the manufacturer but some data is sourced from our loyal community.

Last Updated:	2025-07-07
Modulation:	Digital
Torque:	6.0V: 344.00 oz-in (24.77 kg-cm) 7.4V: 396.00 oz-in (28.52 kg-cm) 8.4V: 517.00 oz-in (37.23 kg-cm)
Speed:	6.0V: 0.17 sec/60° 7.4V: 0.14 sec/60° 8.4V: 0.13 sec/60°
Weight:	2.75 oz (78.0 g)
Dimensions:	Length:1.57 in (39.9 mm) Width:0.83 in (21.1 mm) Height:1.59 in (40.4 mm)
Motor Type:	Brushless
Gear Type:	Steel
Rotation/Support:	Dual Bearings
Rotational Range:	90°
Pulse Cycle:	(add)
Pulse Width:	1500-2000 µs
Connector Type:	(add)
