Technical Specifications
Last Updated: 2026-10-10
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |

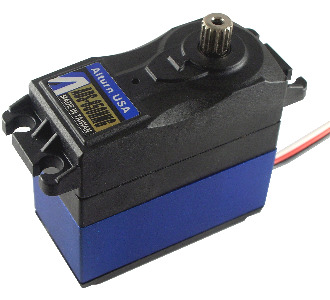

| Product Number | ADS-850MG |
| Category | Hobby |
| Performance | |
| Torque |
6.0V
348.00 oz-in
25.06 kg-cm
2.5 N-m
4.8V
262.00 oz-in
18.87 kg-cm
1.9 N-m
|
| Speed |
6.0V
0.13 sec/60°
461.5 deg/s
76.9 RPM
4.8V
0.16 sec/60°
375.0 deg/s
62.5 RPM
|
| Physical | |
| Weight | 3.60 oz102.0 gBelow Average |
| Dimensions |
L 1.72 in W 0.79 in H 1.69 in L 43.7 mm W 20.1 mm H 42.9 mm |
| Drivetrain | |
| Motor Type | 3-pole |
| Gears | Metal |
| Rotation/Support | Dual Bearings |
| Control & Signal | |
| Modulation | Digital |
| Rotational Range | 80° |
| Pulse Width | 1500-1900 µs |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Class Comparison
| Weight | Below Average Lighter than 25% of 143 Digital Large servos |
Performance Analysis
| Shaft Power | 3.03–4.95 W |
| Power Density | 2.155 W/in³ More power-dense than 76% of 108 Digital Large servos |
| Torque Density | 2.5686 oz-in/g |
| Torque-to-Volume Ratio | 114.09 oz-in/in³ |
| Speed-to-Weight | 0.06127 (1/sec·g) |
| Speed-Torque Trade-off | 41.92 |
