Technical Specifications
Last Updated: 2026-10-10
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |
| Category | Hobby |
| Performance | |
| Torque |
6.0V
30.00 oz-in
2.16 kg-cm
0.2 N-m
4.8V
26.00 oz-in
1.87 kg-cm
0.2 N-m
|
| Speed |
6.0V
0.08 sec/60°
750.0 deg/s
125.0 RPM
4.8V
0.10 sec/60°
600.0 deg/s
100.0 RPM
|
| Physical | |
| Weight | 0.65 oz18.4 gBelow Average |
| Dimensions |
L 0.99 in W 0.51 in H 0.91 in L 25.1 mm W 13.0 mm H 23.1 mm |
| Case Material | Metal |
| Drivetrain | |
| Motor Type | Coreless |
| Gears | Titanium |
| Rotation/Support | Single Bearing |
| Control & Signal | |
| Modulation | Digital |
| Rotational Range | 80° |
| Pulse Width | 1500-2000 µs |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Class Comparison
| Weight | Below Average Lighter than 19% of 620 Digital Micro servos |
Performance Analysis
| Shaft Power | 0.48–0.69 W |
| Power Density | 1.509 W/in³ More power-dense than 41% of 590 Digital Micro servos |
| Torque Density | 1.4130 oz-in/g |
| Torque-to-Volume Ratio | 56.59 oz-in/in³ |
| Speed-to-Weight | 0.54348 (1/sec·g) |
| Speed-Torque Trade-off | 2.60 |
Similar Active Servos

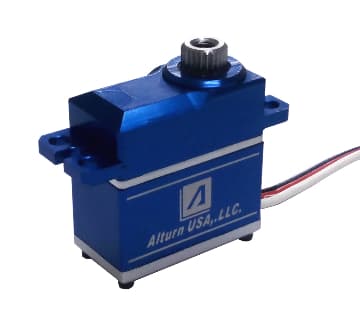

Reviews of Alturn ADS-330HTG
