Technical Specifications
Last Updated: 2026-10-10
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |

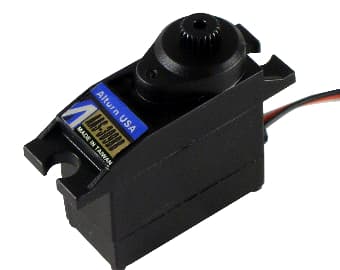

| Product Number | AAS-309BB |
| Category | Hobby |
| Performance | |
| Torque |
6.0V
23.00 oz-in
1.66 kg-cm
0.2 N-m
4.8V
20.00 oz-in
1.44 kg-cm
0.1 N-m
|
| Speed |
6.0V
0.10 sec/60°
600.0 deg/s
100.0 RPM
4.8V
0.12 sec/60°
500.0 deg/s
83.3 RPM
|
| Physical | |
| Weight | 0.34 oz9.6 gBelow Average |
| Dimensions |
L 0.94 in W 0.50 in H 0.92 in L 23.9 mm W 12.7 mm H 23.4 mm |
| Drivetrain | |
| Motor Type | 3-pole |
| Gears | Carbon |
| Rotation/Support | Single Bearing |
| Control & Signal | |
| Modulation | Analog |
| Rotational Range | 80° |
| Pulse Width | 1500-1900 µs |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Class Comparison
| Weight | Below Average Lighter than 27% of 346 Analog Micro servos |
Performance Analysis
| Shaft Power | 0.31–0.43 W |
| Power Density | 0.984 W/in³ More power-dense than 63% of 333 Analog Micro servos |
| Torque Density | 2.0833 oz-in/g |
| Torque-to-Volume Ratio | 46.25 oz-in/in³ |
| Speed-to-Weight | 0.86806 (1/sec·g) |
| Speed-Torque Trade-off | 2.40 |
