Technical Specifications
Last Updated: 2026-10-10
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |

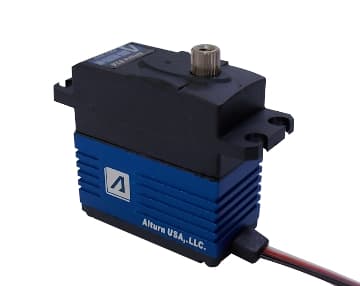

| Product Number | ABDS-996HTG |
| Category | Hobby |
| Performance | |
| Torque |
6.0V
176.00 oz-in
12.67 kg-cm
1.2 N-m
4.8V
218.00 oz-in
15.70 kg-cm
1.5 N-m
|
| Speed |
6.0V
0.16 sec/60°
375.0 deg/s
62.5 RPM
4.8V
0.18 sec/60°
333.3 deg/s
55.6 RPM
|
| Physical | |
| Weight | 1.98 oz56.0 gAbove Average |
| Dimensions |
L 1.56 in W 0.74 in H 1.54 in L 39.6 mm W 18.8 mm H 39.1 mm |
| Drivetrain | |
| Motor Type | Brushless |
| Gears | Titanium |
| Rotation/Support | Dual Bearings |
| Control & Signal | |
| Modulation | Digital |
| Rotational Range | 80° |
| Pulse Width | 1500-2000 µs |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Class Comparison
| Weight | Above Average Lighter than 71% of 1902 Digital Standard servos |
Performance Analysis
| Shaft Power | 2.03–2.24 W |
| Power Density | 1.260 W/in³ More power-dense than 24% of 1759 Digital Standard servos |
| Torque Density | 3.8929 oz-in/g |
| Torque-to-Volume Ratio | 122.63 oz-in/in³ |
| Speed-to-Weight | 0.09921 (1/sec·g) |
| Speed-Torque Trade-off | 39.24 |
