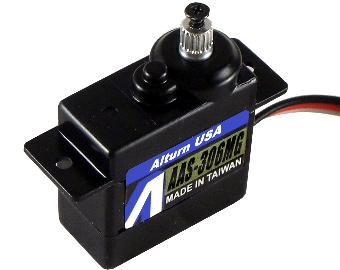

Alturn AAS-306MG - Micro Servo

Specifications

Source: Most data comes from the manufacturer but some data is sourced from our loyal community.

Last Updated:	2025-07-07
Modulation:	Analog
Torque:	4.8V: 17.00 oz-in (1.22 kg-cm) 6.0V: 20.00 oz-in (1.44 kg-cm)
Speed:	4.8V: 0.13 sec/60° 6.0V: 0.12 sec/60°
Weight:	0.26 oz (7.3 g)
Dimensions:	Length:0.92 in (23.4 mm) Width:0.36 in (9.1 mm) Height:0.90 in (22.9 mm)
Motor Type:	3 Pole
Gear Type:	Metal
Rotation/Support:	Single Bearing
Rotational Range:	80°
Pulse Cycle:	(add)
Pulse Width:	1500-1900 µs
Connector Type:	(add)
