Technical Specifications
Last Updated: 2026-10-25
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |

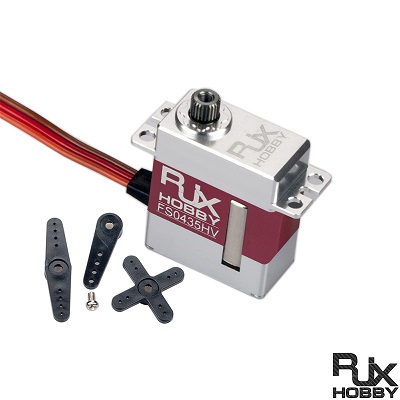

| Product Number | FS0435HV |
| Category | Hobby |
| Performance | |
| Torque |
7.4V
47.22 oz-in
3.40 kg-cm
0.3 N-m
6.0V
38.88 oz-in
2.80 kg-cm
0.3 N-m
5.0V
30.55 oz-in
2.20 kg-cm
0.2 N-m
Average
|
| Speed |
7.4V
0.04 sec/60°
1,500.0 deg/s
250.0 RPM
6.0V
0.05 sec/60°
1,200.0 deg/s
200.0 RPM
5.0V
0.06 sec/60°
1,000.0 deg/s
166.7 RPM
Top 10%
|
| Physical | |
| Weight | 0.71 oz20.0 gBelow Average |
| Dimensions |
L 0.91 in W 0.47 in H 1.07 in L 23.1 mm W 11.9 mm H 27.2 mm |
| Drivetrain | |
| Motor Type | Coreless |
| Gears | Metal |
| Control & Signal | |
| Modulation | Digital |
| Neutral Position | 1520 µs |
| Refresh Rate | 333 Hz |
| Electrical & Environment | |
| Operating Voltage | 5–7.4 V |
| Connectivity | |
| Connector | JR (Universal) estimate |
| Origin | |
| Country of Origin | China |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Class Comparison
| Torque | Average Stronger than 57% of 349 Digital Micro servos at 5.0V |
| Speed | Top 10% Faster than 97% of 347 Digital Micro servos at 5.0V |
| Weight | Below Average Lighter than 15% of 597 Digital Micro servos |
Performance Analysis
| Shaft Power | 0.94–2.18 W |
| Power Density | 4.769 W/in³ More power-dense than 79% of 563 Digital Micro servos |
| Torque Density | 1.5275 oz-in/g Stronger than 9% of 349 Digital Micro servos |
| Torque-to-Volume Ratio | 66.76 oz-in/in³ Denser torque than 39% of 345 Digital Micro servos |
| Speed-to-Weight | 0.83333 (1/sec·g) Faster than 61% of 347 Digital Micro servos |
| Speed-Torque Trade-off | 1.83 Better balanced than 19% of 345 Digital Micro servos |
| Torque Gain per Volt | 22.74%/V More voltage-responsive (torque) than 82% of 290 Digital Micro servos |
| Speed Gain per Volt | 20.83%/V More voltage-responsive (speed) than 66% of 295 Digital Micro servos |
| Voltage Range Width | 2.4 V Wider voltage range than 59% of 496 Digital Micro servos |
