Technical Specifications
Last Updated: 2026-07-28
|
Identity
Performance
Physical
Drivetrain
Control & Signal
Electrical & Environment
Connectivity
Origin
Preferences are saved automatically.
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |
| Product Number | (add) |
| Category | Hobby |
| Performance | |
| Torque |
8.2V
113.90 oz-in
8.20 kg-cm
0.8 N-m
7.4V
102.79 oz-in
7.40 kg-cm
0.7 N-m
6.0V
83.34 oz-in
6.00 kg-cm
0.6 N-m
4.8V
66.67 oz-in
4.80 kg-cm
0.5 N-m
|
| Speed |
8.2V
0.05 sec/60°
1,200.0 deg/s
200.0 RPM
7.4V
0.07 sec/60°
857.1 deg/s
142.9 RPM
6.0V
0.08 sec/60°
750.0 deg/s
125.0 RPM
4.8V
0.12 sec/60°
500.0 deg/s
83.3 RPM
|
| Running Current | (add) |
| Stall Current | (add) |
| Physical | |
| Weight | 1.76 oz50.0 g |
| Dimensions |
L 1.42 in W 0.59 in H 1.40 in L 36.1 mm W 15.0 mm H 35.6 mm |
| Case Material | Aluminum |
| Drivetrain | |
| Motor Type | Coreless |
| Motor Drive | (add) |
| Gears | Metal |
| Gear Spline/Teeth | (add) |
| Shaft Size | (add) |
| Rotation Mode | (add) |
| Rotation/Support | (add) |
| Backlash | (add) |
| Control & Signal | |
| Modulation | Digital |
| Direction | (add) |
| Rotational Range | (add) |
| Mechanical Limit | (add) |
| Pulse Cycle | (add) |
| Pulse Width | (add) |
| Neutral Position | 1520 µs |
| Dead Band | (add) |
| Refresh Rate | 333 Hz |
| Angle Sensor | (add) |
| Control System | (add) |
| Programmable | (add) |
| Signal Voltage | (add) |
| Electrical & Environment | |
| Operating Voltage | 6–8.4 V |
| Power Source | (add) |
| Regulator Type | (add) |
| Temperature | (add) |
| Water Rating | (add) |
| Certification | (add) |
| Idle Current | (add) |
| Connectivity | |
| Connector | JR (Universal) estimate |
| Wire Length | (add) |
| Origin | |
| Country of Origin | China |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Performance Analysis
| Shaft Power | 1.03–4.21 W |
| Torque Density | 1.6668 oz-in/g Stronger than 16% of the 832 Digital Standard servos in the database |
| Torque-to-Volume Ratio | 71.05 oz-in/in³ Denser torque than 29% of the 843 Digital Standard servos in the database |
| Power Density | 3.591 W/in³ More power-dense than 67% of the 1644 Digital Standard servos in the database |
| Speed-to-Weight | 0.25000 (1/sec·g) Faster than 88% of the 821 Digital Standard servos in the database |
| Speed-Torque Trade-off | 6.67 Better balanced than 11% of the 826 Digital Standard servos in the database |
| Voltage Range Width | 2.4 V Wider voltage range than 48% of the 1269 Digital Standard servos in the database |
Quick Actions
Similar Active Servos

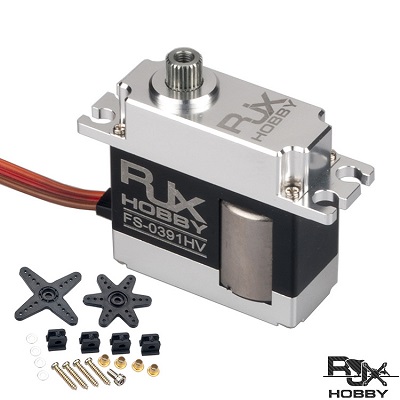

Reviews of RJX Hobby FS0391HV
