Technical Specifications
Last Updated: 2026-10-26
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |

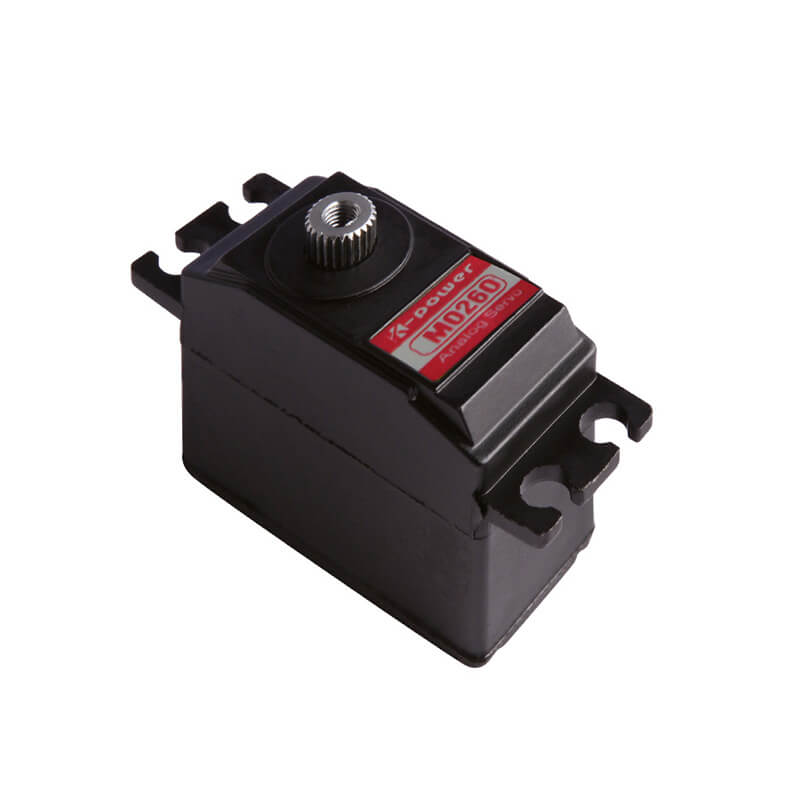

| Product Number | M0260 |
| Category | Hobby |
| Performance | |
| Torque |
6.0V49.99 oz-in3.60 kg-cm0.4 N-m |
| Speed |
6.0V0.11 sec/60°545.5 deg/s90.9 RPM |
| Physical | |
| Weight | 0.99 oz28.0 gBelow Average |
| Dimensions |
L 1.40 in W 0.59 in H 1.14 in L 35.6 mm W 15.0 mm H 29.0 mm |
| Case Material | Plastic |
| Drivetrain | |
| Motor Type | Brushed |
| Gears | Metal |
| Rotation/Support | Dual Bearings |
| Control & Signal | |
| Modulation | Digital |
| Rotational Range | 180° |
| Angle Sensor | Potentiometer |
| Control System | PWM |
| Electrical & Environment | |
| Operating Voltage | 4.8–7.4 V |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Class Comparison
| Weight | Below Average Lighter than 34% of 505 Digital Mini servos |
Performance Analysis
| Shaft Power | 0.84 W |
| Power Density | 0.892 W/in³ More power-dense than 14% of 482 Digital Mini servos |
| Torque Density | 1.7854 oz-in/g |
| Torque-to-Volume Ratio | 53.09 oz-in/in³ |
| Speed-to-Weight | 0.32468 (1/sec·g) |
| Speed-Torque Trade-off | 5.50 |
| Voltage Range Width | 2.6 V Wider voltage range than 62% of 405 Digital Mini servos |
